| Brand Name: | HSTECH |
| Model Number: | HS-SZ350 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

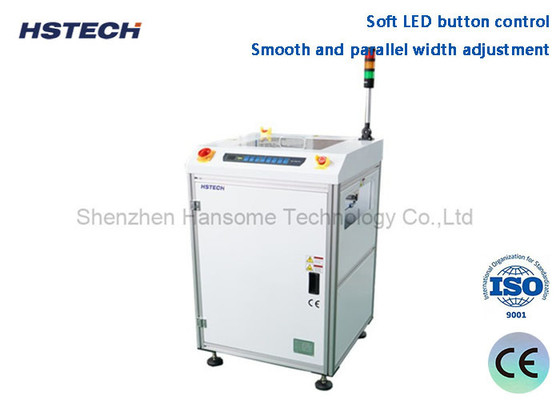

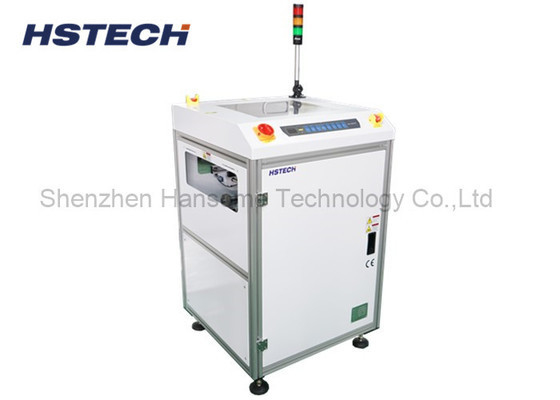

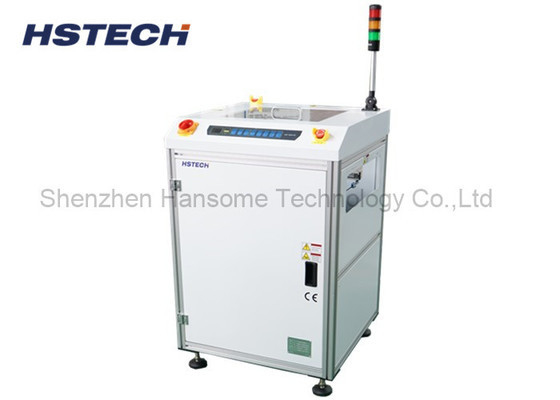

Soft LED Button Control Smooth And Parallel Width Adjustment SMEMA Compatible PCB Turn Conveyor
Introduction
This machine used for change the PCB flow direction in the SMT production line.
Features
1, Change the PCB flow direction in 90,180,270 degree.
2, Fixed rail selection based on customer's requirement.
3, Soft LED button control, traditional but easy operation.
4, Top side safety transparent cover, operation can watch the whole working process.
5, Enclosed design with built-in torque limiter ensure high level safety.
6, Hiwin linear guide and lead screw to make smooth and precise rotation.
7, Minimize the transfer gap between conveyors.
8, PCB traffic flows can be customized.
8, Smooth and parallel width adjustment(lead screw).
9,SMEMA compatible.
Specification
| Product name | PCB Turn Conveyor |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
