| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

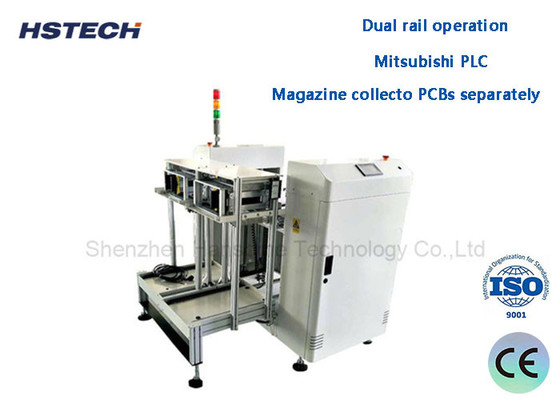

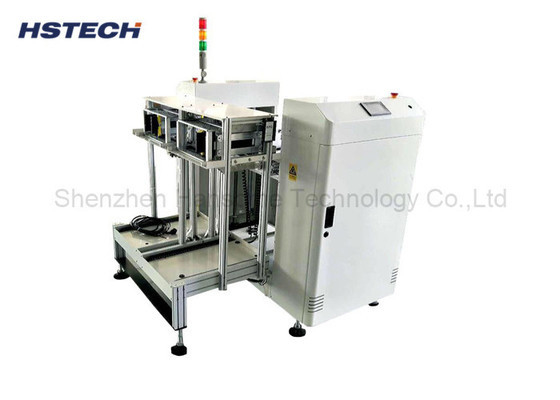

NG / OK PCB Unloader Standard Height PCB Handling Equipment with Dual Rail
Intorduction
This machine is dual rail operation, used to collect the NG and OK PCBs to separately magazines.
Features
1, Dual rail operation, NG and OK boards from different rails, and collect to different magazines.
2, Mitsubishi PLC, and touch screen control, double operation panel.
3, Magazine collecto PCBs separately.
4, Selective pitch: 10mm,20mm,30mm,40mm.
5, PCB transport direction: L - R, or R - L,optional.
6, Manual/Automatic run mode selection.
7, Front rail fixed or rear rail fixed,optional.
8, Standard height for SMT application(920±20mm).
9, Tower light display.
10, SMEMA signal.
Specification
| Model | HS-NK250 |
| PCB dimension | (50*50)~(460*330)mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
