| Brand Name: | HSTECH |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

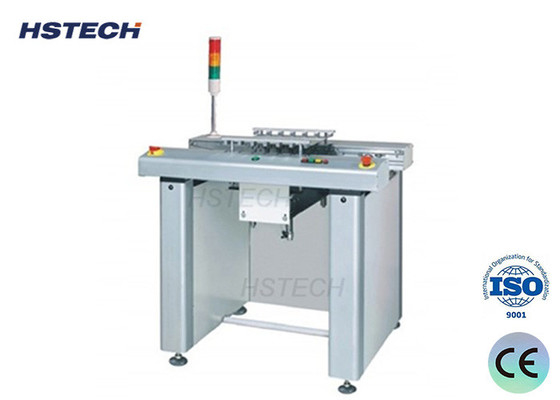

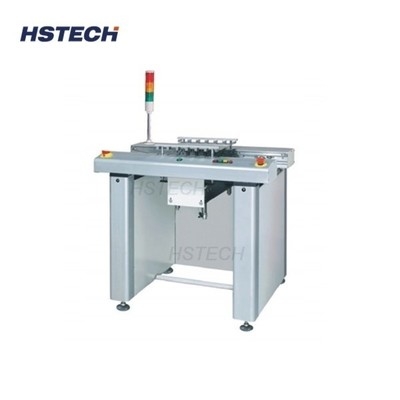

Durable Stainless Steel Laser Cutting Edge Or Iented Topgrade Conveyor
Main Function
This machine is used to connect with SMT production line
Discription

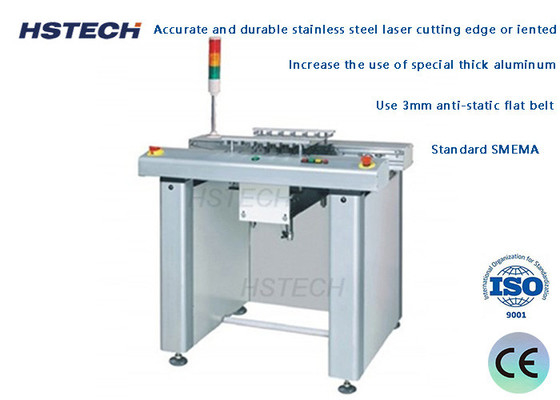

a, Increase the use of special thick aluminum
b, Accurate and durable stainless steel laser cutting edge or iented
c, Smooth parallel to the width of the screw adjustment method
d, Strengthening the structural design to improve the stability of the equipment
e, use 3mm anti-static flat belt
f, Standard SMEMA
Parameter
| Type | TC-250A | TC-300A |
| Power Supply | AC220/AC110V 50/60HZ | AC220/AC110V 50/60HZ |
| Optional | 1,light 2, fan 3, magnnifying | 4, dust proof cover 5,inspection platform |
| PCB Size(mm) | 445*50~350 | 535*50~460 |
| Transport direction | left to right or right to left | left to right or right to left |
| Transmission Speed | 1-12m/min | 1-12m/min |
| Transport Height(mm) | 900±20 | 900±20 |
| Trick fixed side | front side or back side | front side or back side |
| Motor power | 12W | 12W |
| Machine dimension | 500*745*900 | 1000*745*900 |
| Weight | 50 | 80 |
About Packaging
