| Brand Name: | HSTECH |
| Model Number: | AIS203-12C |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Specification
| Model | AIS203-12C | AIS203-29C |
| PCB Size | 50x50mm~400x300mm | 50x50mm~520x380mm |
| Camera | 12MP color | 29MP color |
| Light source | White | W + strip light source on four sides |
| FOV | 400*300mm | 520*380mm |
| Resolution | 90um | 80um |
| Communication method | SMEMA | SMEMA |
| CPU | Intel i5 CPU | Intel i5 CPU |
| Display card | Nvida Independent GPU Accelerator Card | |
| Storage | 8GDDR,256G SSD+2T Mechanical HD | |
| Power Supply | AC 220,200W | |
| Dimension(L*H*W) | 715*(1315-1700)*(760-1210)mm | |
| Net Weight | 100kg | |
Features
1, Remote assistant: Remote debugging, control and centralized management.
Help to reduce work interruption and improve work efficiency,upgrade software remotely,remote support,rapid response for maintenance.
2, Quick programming:Intelligent algorithm, frame selection components automatically (capacitor, diode, socket) (after training: crystal oscillator, mung bean, inductance, etc.)
Application

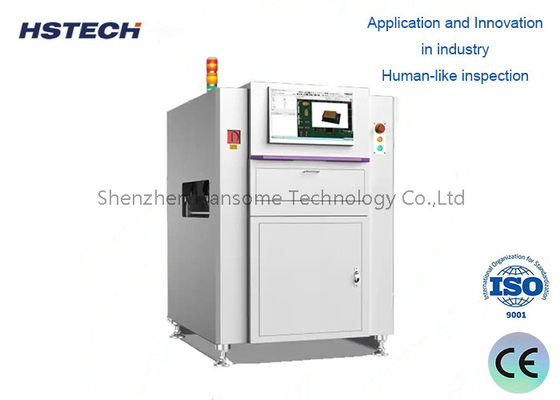

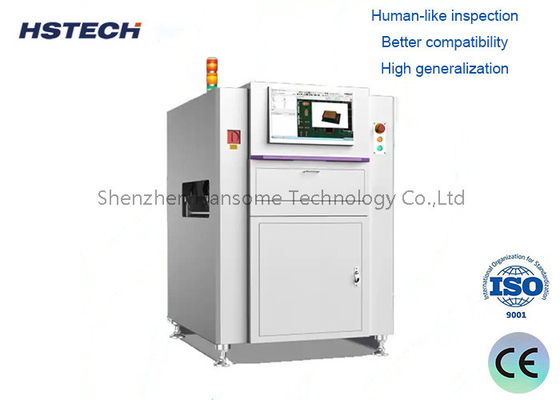

This inline THT AOI used before wave soldering machine in DIP production line,it used for Correcting the wrong units, which can reduce repairs and time. The passing rate can be improved efficiently. This machine widely used for inspecting TV mainboard,PC mainboard,power board,industrial control board,Mini household electronic appliances and other PCBAs.
