| Brand Name: | HSTECH |
| Model Number: | AIS203-12C |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

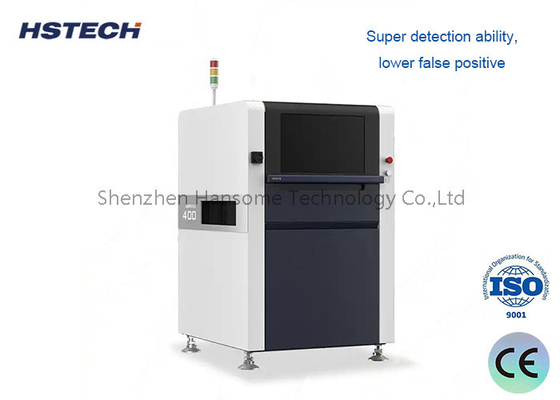

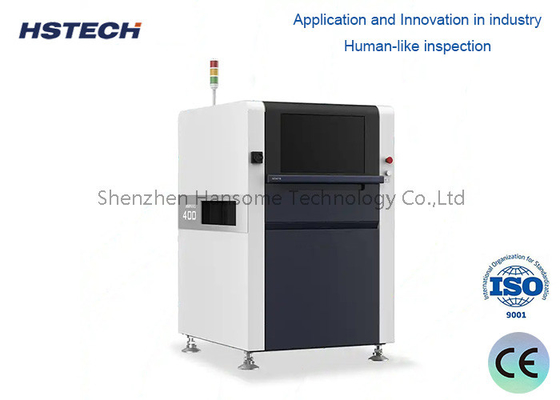

Quick Installation Fast Inspection Speed Remote Assistant Inline THT DIP AOI Before Wave Soldering
Specification
| Model | AIS203-12C | AIS203-29C |
| PCB Size | 50x50mm~400x300mm | 50x50mm~520x380mm |
| Camera | 12MP color | 29MP color |
| Light source | White | W + strip light source on four sides |
| FOV | 400*300mm | 520*380mm |
| Resolution | 90um | 80um |
| Communication method | SMEMA | SMEMA |
| CPU | Intel i5 CPU | Intel i5 CPU |
| Display card | Nvida Independent GPU Accelerator Card | |
| Storage | 8GDDR,256G SSD+2T Mechanical HD | |
| Power Supply | AC 220,200W | |
| Dimension(L*H*W) | 715*(1315-1700)*(760-1210)mm | |
| Net Weight | 100kg | |
Features
A, Quick installation: It can be installed within an hour ,inline inspection. No need to modify original production line, height and width adjustable.
B, Intelligent Algorithms: Deep Learning Based on Neural Networks ,traditional algorithms: color, edge, feature detection and contrast algorithms, etc. OCR Character Recognition Algorithms.
C, Fast inspection speed: Inline inspection while production line running. Inspection time is not affected by production line speed, result will be given out the result once the board passes through 3 photos per second.
D, Remote assistant: Remote debugging, control and centralized management.
Help to reduce work interruption and improve work efficiency,upgrade software remotely,remote support,rapid response for maintenance.
E, Quick programming:Intelligent algorithm, frame selection components automatically (capacitor, diode, socket) (after training: crystal oscillator, mung bean, inductance, etc.)
F, Personality testing, strong applicability:
Supporting Multi panel inspection,Supporting Mixed Board inspection ,Supporting Mixture inspection ,Support Rotation Recognition of Arbitrary Angle and Position
