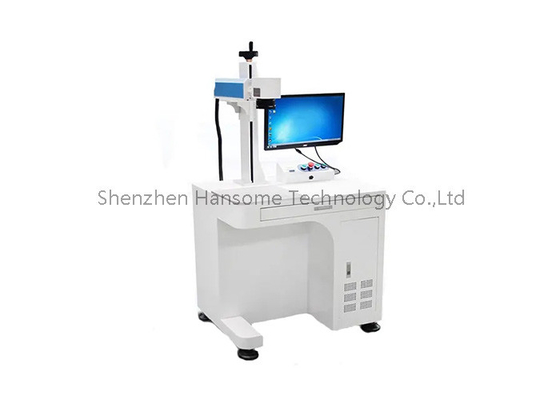

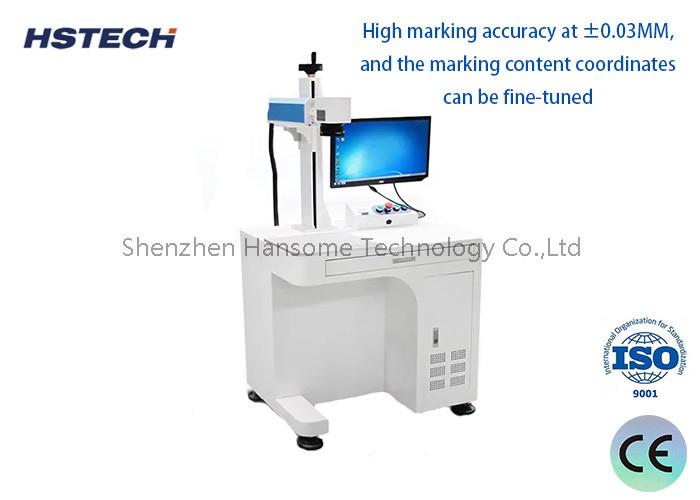

3W UV Laser Marking System for PCB Handling Equipment with Min Character

Brand Name:	HSTECH
Model Number:	HS-UV3W
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

UV Laser Marking Machine

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Air Cooled 3W UV Laser Marking System with Min Character 0.15mm

Specification

Model	HS-UV3W
Output power	3W
Laser type	3W UV laser unit
Marking area	150*150mm(Optional)
Laser point diameter	<0.01mm
Laser output power	0~100% adjustable
Working frequency range	5~100KHz
Power stability	<±1%rms
Laser wave length	355nm
Marking type	Static marking/Dynamic marking
Marking speed	≤7000m/s
Min character	0.15mm
Repeat accuracy	±0.003mm
Laser unit	Chinese brand/Overseas brand(optional)
Cooling type	Air cooling
Power supply	AC220V,60Hz,15A
Software	Professional SW
Laser lifespan	20000Hrs
Machine size	900mm680mm1500
Machine weight	120kg
