Anti-static High Temperature Resistant ESD Magazine SMT Storage Holder PCB Rack
Introduction
This PCB magazine racks are widely used in the PCB loader and unloader machine, suitable for transport, store and manage the PCBs in the PCB fabrication factories, it's a smart PCB storage system, the magazines take small room, but it can be stackable and store the PCBs convenient and ordered. The magazines are healthy products, which is Non-toxic, odorless, moisture-proof, corrosion-resistant, also high temperature resistance, it play a big role in the warehouse and production spot.
Specification
| Overal size | 535*460*565mm,also has other options |
| Suitable PCB size | 50*50~530*390mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Features
1, This product is used for PCB loader and unloader machine, collect,transport and store the PCBs in the warehouse or production room.
2, Top and bottom part using drable metal material panel, ensure the whole structure stable.
3,, The whold rack is anti-static design, max can store 50pcs PCBs.

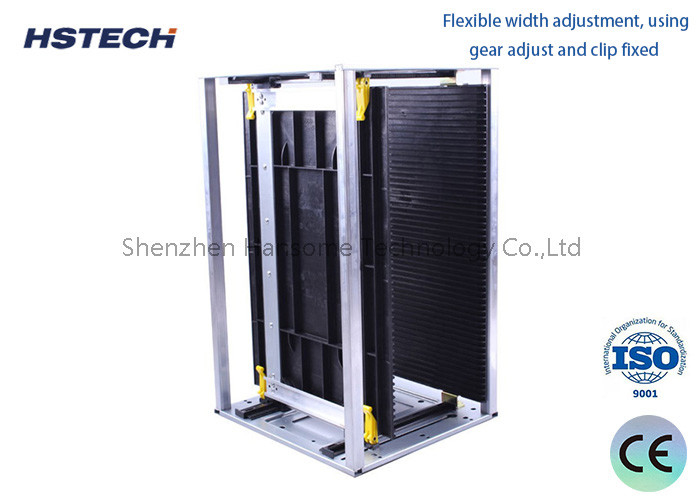

4, Width can be adjusted via gear and fixed by the clip.
5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
6, Stable structure, wont bent during operation, the racks also high temperature resistance.
7, Easy to install and disassembly, convenient for replacement and maintenance.
SMT production line equipment:
1. SMD machine: the use of equipment edited by the program will be components mounted on the designated parts position, can be mounted SOP 28pin or more (including high-speed machine can be mounted components) rolls, discs or tubes of packaging components. Characterised by high mounting accuracy, diversification, but the mounting speed is inferior to high-speed machines.
2. Reflow soldering: SMT solder paste or red glue using the temperature to set the appropriate temperature profile so that the solder paste and parts to complete the welding action.
3.Unloader: Through the transmission track, the board is collected in the magzine.
