| Brand Name: | HSTECH |
| Model Number: | YS-802E |
| MOQ: | 1 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

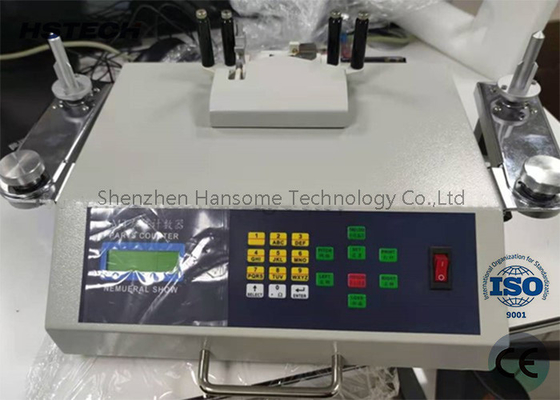

Compact SMD Components Counter with Leak Detection, Speed Control, Button Control
Features
1. Stainless steel machine body.
2. Leak detection function, when tracking missing components, the counter will stop and reminder you.
3. The operation is simple, the positive and negative can be counted, and the function is really preset.
4. The quantity of preset parts can be used for the design of SMT belt type parts.
5. It can be equipped with scanning gun and bar code printer for easy management.
6. Counting speed can be ajustable,improve the efficiency,meet the different size tape.
7. The counter use drafting LCD screen. Small size, light weight, easy to carry

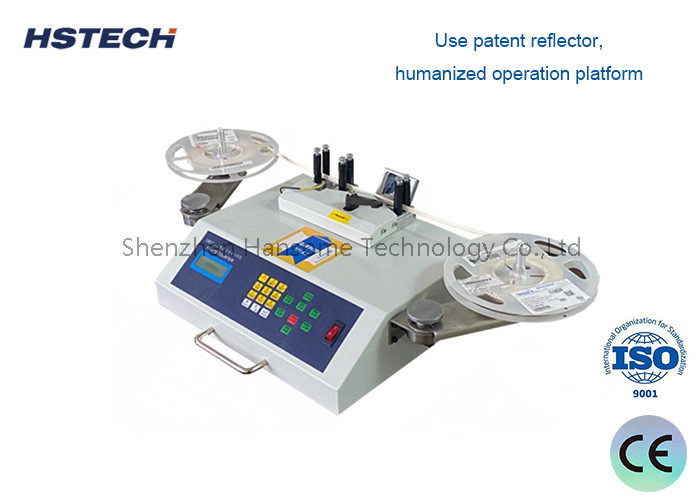

8 .Use patent reflector,humanized operation platform.
9. Fully control the components in the factory, avoid mistakes.
10. Fully control the number of SMT parts in the factory, and avoid the inventory and capital accumulation. Small size, light weight, easy to carry.
Specification
| Model | YS-E802 |
| Power supply | AC110V,AC220V, 50/60Hz |
| Wattage | 30W |
| Counting time | 19 seconds to 2 min |
| Counting range | -59999~59999 |
| Pitch size | 2,4,8,9,10,12,16,24,32mm |
| Tape width | 8,12,16,24,32,44,56,72,88 m |
| Plastic reel size | 7-13 inch |
| Application | Suitable for all components |
| Product size | 450*270*180mm |
| Package size | 460*280*190mm |
| Gross weight | 10kg |
SMT production line equipment:
1. SMD machine: the use of equipment edited by the program will be components mounted on the designated parts position, can be mounted SOP 28pin or more (including high-speed machine can be mounted components) rolls, discs or tubes of packaging components. Characterised by high mounting accuracy, diversification, but the mounting speed is inferior to high-speed machines.
2. Reflow soldering: SMT solder paste or red glue using the temperature to set the appropriate temperature profile so that the solder paste and parts to complete the welding action.
3.Unloader: Through the transmission track, the board is collected in the magzine.
