| Brand Name: | HSTECH |
| Model Number: | GD-01 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000000 Meters per month |
SMD Component Counter Cover Tape: Transparent Hot Sealing PET Material, 0.2Mpa Sealing Pressure, Width 9.3mm
Introduction
The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.
Cover tape specification
| Name | Cover tape |
| Material | Composite material |
| Calculation unit | Meter |
| Tape width | 9.3mm |
| Tape specs | 300M per reel |
| Color | Transparent |
| Sealing pressure | 0.2Mpa |
| MOQ | 200meters |
| Cover tape | hot sealing |
| Reels | Available |
Carrier tape size and matched cover tape
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Features
1, Stable pelling force stress, and the component is not moved when peeling off.

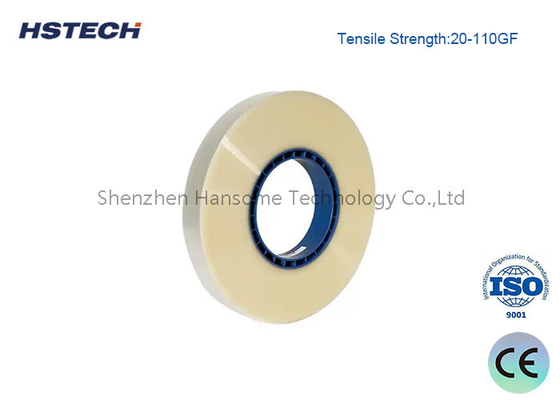

2, Tensile Strength:20-110GF

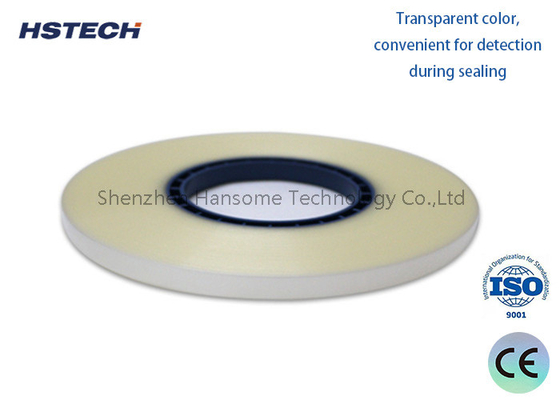

3, Transparent color, convenient for detection during sealing.
4, Multiple options for cover tape width, 5.4/9.3/13.3/21.3/25.5mm,etc.also can be custom according to the requirement.
Production process
Coating
The silicone release polyester film isapplied to the coating machine to addaqueous silicone coating composition.
Slitting
After the silicone release polyester filmis coated, the roll is applied to the slitterrewinder where it's unwound and runthrough knives, before being rewoundon shafts to form narrower rolls.
Packaging
The finished products are packaged ina standard transport package designedto provide protection during handling!storage,and transportation.
