| Brand Name: | HSTECH |
| Model Number: | HS-460FL |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
MITSUBISHI PLC Automated PCB Inverter / Flipper Handling Machine with Step Motor
Features

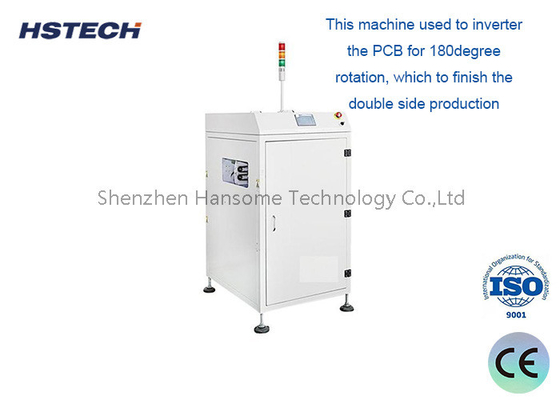

1, This machine used to inverter the PCB for 180degree rotation, which to finish the double side production.
2, 4 pitched selection.
3, Touch screen control and MITSUBISHI PLC.
4, 3 color light display.

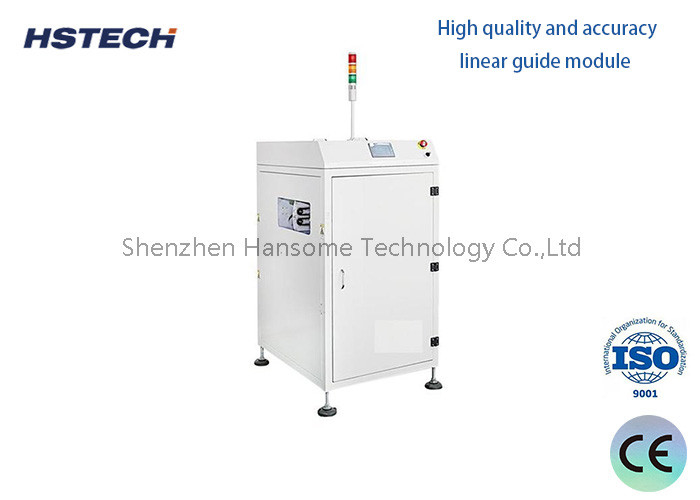

5, High quality and accuracy linear guide module.
6, Flexible turnover, ball screw can connect the upper and down stream equipment smoothly.
7, Fully stainless steel machine body, durable and long lifespan.
8, SMEMA signal.
Specification
| Machine function | 180degree PCB invertering |
| Power supply | AC100-230V, single phase, 50/60Hz |
| Transport belf | ESD 7mm belt |
| PCB dimension | (50*50)-(500*460)mm |
| Air supply | 4-6 bar,max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L-R or R-L (optional) |
| PCB thickness | Min 0.4mm |
| Up/down pitches | 1-4(10mm step) |
| Recycle time | around 20 seconds |
| Communication | SMEMA |
| Machine dimension | 600*900*1200mm |
| Weight | 140kg |
About Packaging
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
