| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100 sets per month |

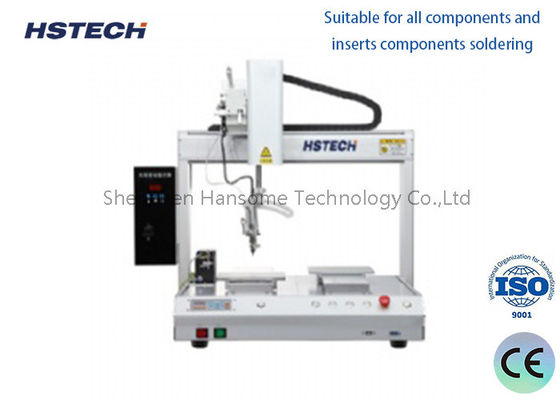

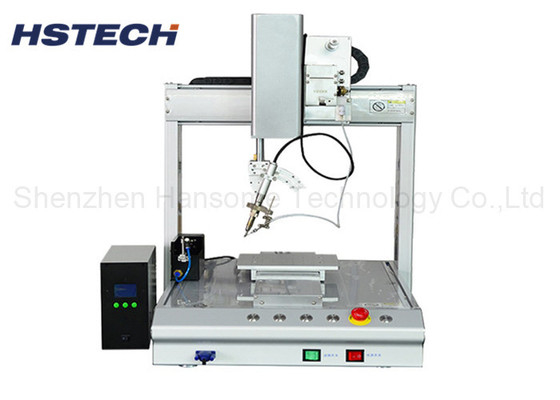

High Precision Stepper Motor Soldering Robot For Navigation PCB
Introduction:
This automatic soldering machine is a desktop model soldering robot, the machine adopts stepper motor and timing belt driven system. The whole machine assemblyed with high quality precision Hiwin linear guide and Airtec cylinder. The PCB or product which need to be soldered is fixed by the customized fixtures.
The machine with spot welding, pull welding,automatic cleaning and location corrective,reproduction,array,automatic positioning and so on. Also the machine is easy maintenance and operation, great improve the production efficiency.
Features:
1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, Robot instead of powerman can save much more labor cost.
3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4, The machine support sopt welding, drah welding.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6, Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
8, With the handheld LCD teaching pendant, the programming is simple and easy to learn.
Application:
1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
Specification:
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension | 520*585*800mm |
