Step Motor Flipper PCB Inverter Machine Handling With Flexible Turnover

Step Motor Flipper PCB Inverter Machine Handling With Flexible Turnover

Introduction:

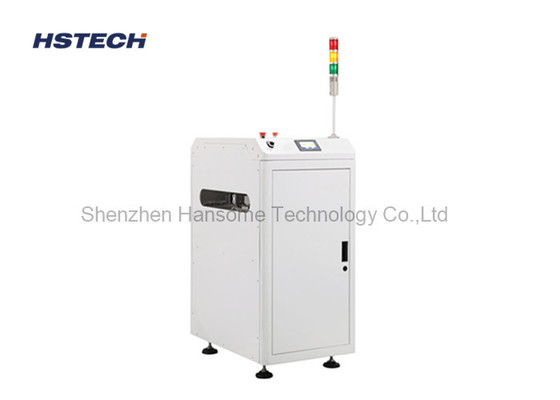

A PCB Inverter Machine is a specialized piece of equipment used in the electronics manufacturing industry to flip or invert printed circuit boards (PCBs) during the assembly process. This machine is particularly useful in processes where the orientation of the PCB needs to be changed, such as during soldering, inspection, or component placement.

Features:

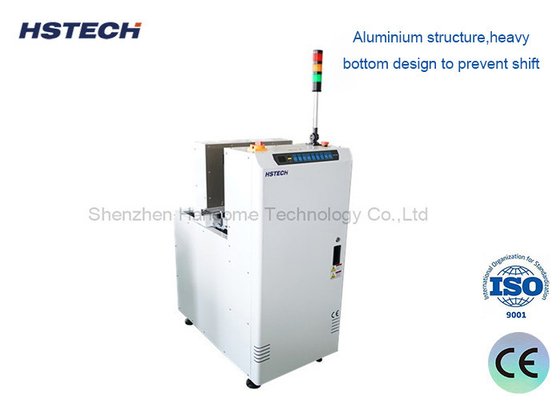

1, This machine used to inverter the PCB for 180degree rotation, which to finish the double side production.

2, 4 pitched selection.

3, Touch screen control and MITSUBISHI PLC.

4, 3 color light display.

5, High quality and accuracy linear guide module.

6, Flexible turnover, ball screw can connect the upper and down stream equipment smoothly.

7, Fully stainless steel machine body, durable and long lifespan.

8, SMEMA signal.

Specification:

Applications

1. Soldering Processes:

   • Used in wave soldering or reflow soldering processes where the orientation of the PCB needs to be changed for effective solder application.

2. Inspection Stations:

   • Facilitates the flipping of PCBs for thorough inspection from both sides, ensuring quality control.

3. Component Placement:

   • Assists in the placement of components on both sides of the PCB by inverting the board for access.

4. Rework and Repair:

   • Used in rework stations to easily flip PCBs for modifications or repairs.

Benefits

1. Increased Efficiency:

   • Automating the flipping process reduces manual labor and speeds up the overall production process.

2. Consistent Quality:

   • Ensures that PCBs are consistently flipped in the same manner, contributing to uniformity in production.

3. Space-Saving:

   • Compact design allows for efficient use of floor space in manufacturing environments.

4. Reduced Handling Damage:

   • Minimizes the risk of damage to the PCB that can occur during manual handling.

5. Enhanced Workflow:

   • Streamlines the production process by integrating seamlessly with other equipment, improving overall operational efficiency.
