| Brand Name: | HSTECH |
| Model Number: | HS-700 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

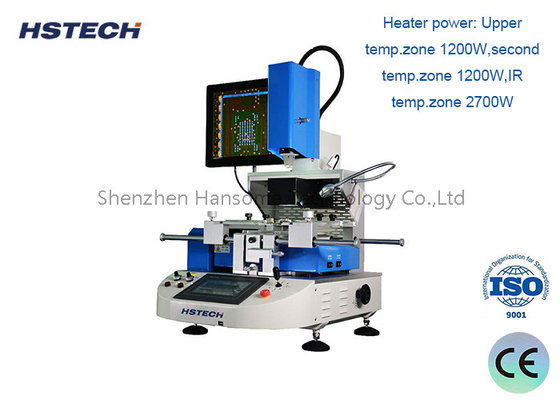

5 Modes Stepping Motor CCD Color Align System Mobil Phone BGA Rework Station
Specification
| Mobile Phone BGA Rework Station | Model:HS-700 |
| Power Supply | AC 100V / 220V±10% 50/60Hz |
| Total power | 2600W |
| Heater power | Top heater 1200W(Max), bottom heater 1200W(Max) |
| Electric material | Driving motor + smart temp. controller + color touch screen |
| Temperature control | high precision K-sensor+ closed loop control + independent temp.controller (the precision can reach ±1℃) |
| Sensor | 1pcs |
| Locating way | V shape PCB support + external universal fixture + laser light for centering and positioning |
| Overall dimension | L450mm*W470mm*H670mm |
| PCB size | Max 140mm*160mm Min 5mm*5mm |
| BGA size | Max 50mm*50mm Min 1mm*1mm |
| Applicable PCB thickness | 0.3 - 5mm |
| Mounting accuracy | ±0.01mm |
| Weight of machine | 30KG |
| Mount chip weight | 150g |
| Working modes | Five: Semi-auto/Manual/Remove/Mount/Weld |
| Usage Repair | chips / phone motherboard etc |
Features
1. 5 work modes
2. 15''HD LCD monitor
3. 7''HD color touch screen
4. stepping motor
5. CCD color optical alignment system
6.Temperature accuracy within ±1℃
7.Mounting precision within ±0.01mm
8.Repair success rate: 99% +
9. Independent research and development of single-chip control
Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system, beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment, adjustable image contrast; equipped with 15 ” high definition LCD monitor. Optical alignment system BGA rework station
Multi-functional and humanized operation system
1. Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1; providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2. X, Y and R angle adopted micrometer fine-tuning, accuracy locating, precision can reach ±0.01mm.
Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself. In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection. Temperature parameter having password protection to prevent any modification.
