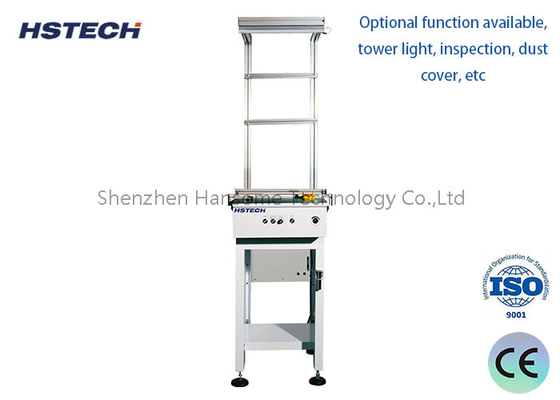

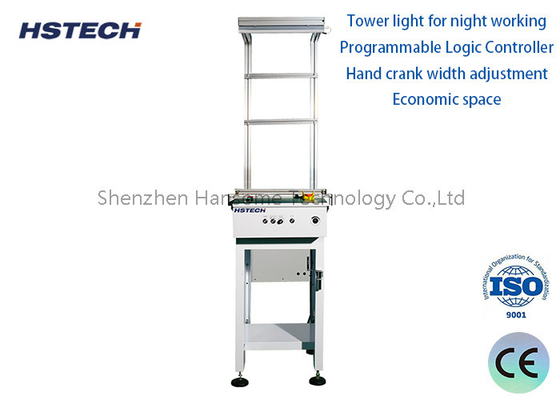

1500mm PCB Handling Equipment with Optional Function and Adjustable Transmission Speed
Features
1.The movable working table, Visible Board document and lighting rack are arranged on the basis of the conveyor;
2.The lighting brightness, operation height and other user-friendly design, the operation is more efficient, convenient and practical;
3.Green flat imported anti-static transmission belt, durable, easy to replace;
4.Sheet metal weighted structure, overall stable, not easy to shift;
5.PLC control system through SMEMA communication.
Specification
| Model | HS-C1500/HS-C1500S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
