| Brand Name: | HSTECH |
| Model Number: | HS-C600 |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |

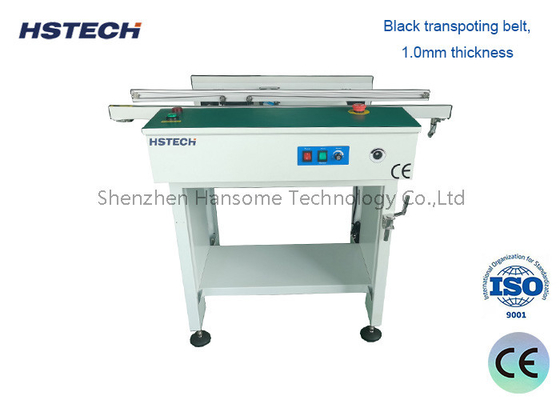

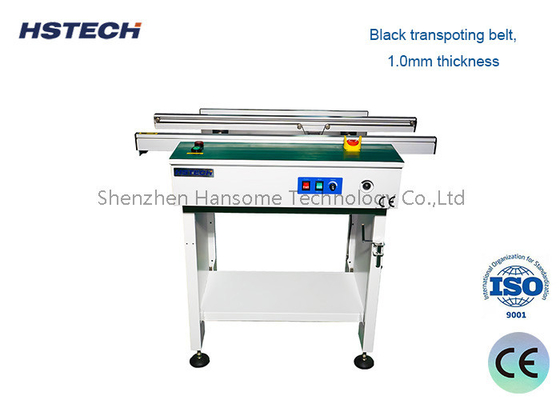

500mm SMT Linking Conveyor PCB Belt Link Conveyor For SMT Production line
Features
1. Thickened steel pipe welded as a whole to ensure smooth transportation; surface phosphating decontamination, outdoor plastic powder coating, with wear resistance, corrosion resistance, no paint, no fading, etc.
2. The anti-static belt equipped with the precision aluminum guide rail to ensure smooth transmission without jamming.
3. Adjustable speed, automatic transmission/ manual detection 2 working modes to meet different production needs.
4. Precision width adjustment mechanism, smooth and easy.
Specification
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
