| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Introduction
SMT assembly line 500mm PCB inspection conveyor
500mm standard SMT Conveyor, it is a short-length SMEMA-compatible transfer conveyors ,is used for SMT assembly production line for visual inspection, manual assembly, and PCB buffering functions. Their advantage is short length, which allows them to be placed anywhere when you have space limited. the front rail is fixed while rear rail can adjust as your PCB width using screwball. covered with a green ESD surface & Made by aluminum Soldering Metal.
Features

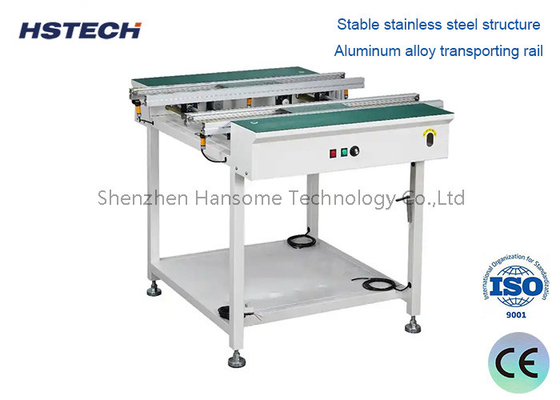

1, Stable stainless steel structure.
2, Hand crand width adjust.
3, Black transpoting belt, 1.0mm thickness.
4, Aluminum alloy transporting rail.

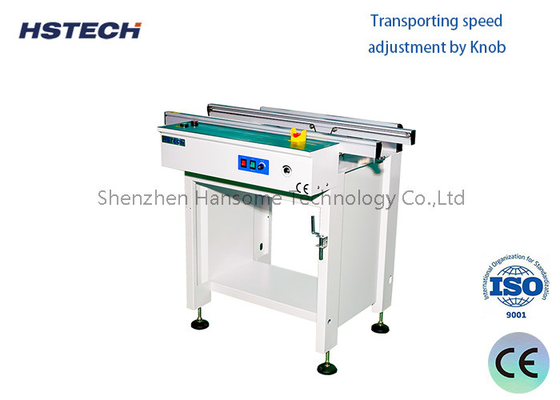

5, LED button control, speed adjustment motor.
6, Optional function available, tower light, inspection, dust cover, etc.
7, Customized requirement available.
8, Length available, 600mm, 1000mm, 1500mm, or optional.
9, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
