5 Axis Double Y Platform Rotation Temperature Control Auto Soldering Machine
Introduction

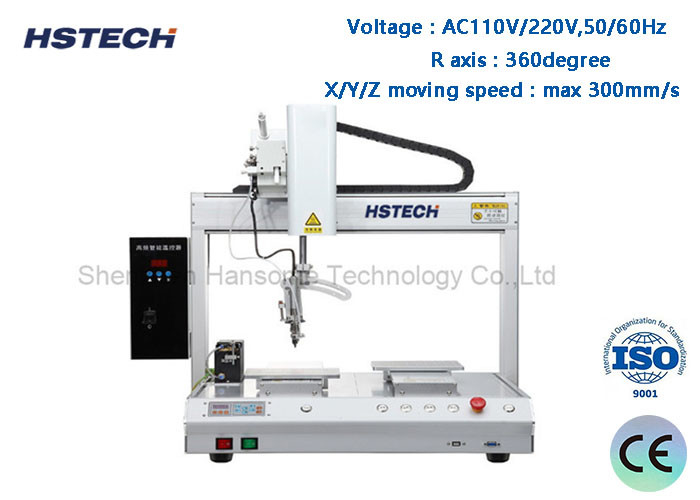

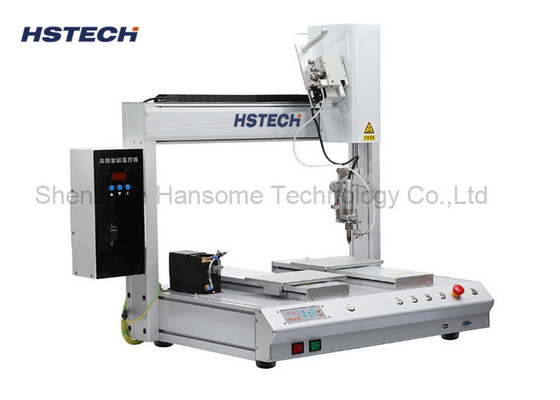

This automatic soldering machine is single rotation soldering head double Y platform machine, movring range 500x300x300x100mm, the machine is used in electronic manufactring factory, for replacing the traditional manual soldering process.
Specification
| Model | HS-S5331R | HS-S6331R | |
| Voltage | AC110V/220V,50/60Hz | ||
| X/Y1/Y2/Z working range | 500*300*300*100mm | 600*300*300*100mm | |
| R axis | 360degree | ||
| X/Y/Z moving speed | max 300mm/s | ||
| Driven system | Stepper motor,timing belt | ||
| Linear guide | Taiwan brand high precison guide | ||
| Repeat accuracy | ±0.02mm | ||
| Programing | Teach pendant | ||
| Control system | Control board | ||
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
||
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
||
| Document support | CAD,CorelDRAW | ||
| Iron Tin cleaning | Air cleaning/pneumatic | ||
| External interface | USB+RS232 | ||
| Soldering method | Point/drag soldering | ||
| Weight | 65kg | 70kg | |
| Machine dimension |
715*585*800mm |
815*685*800mm | |
Main machine configuration
1, Double soldering Iron, double Y working platform.
2, Handheld teach pendant programmer.
3, Heating controller
4, Broken tin controller
5, Solder pen assembly
6, Welding tip
7, Tin out components
Features
1, 5 Axis working, double working platform, with R rotation axis.
2, Single soldering iron the moving range has many options depends on the product dimension.
3, The whole machine made of high quality aluminum, machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
4, Support many welding method, point welding, drag welding,and other functions.
5, Teach pandent programing, can save max 99 groups program.
6, Stepper motor and timing belt control, equipped with Taiwan brand linear guide at the same time.
