Introduction

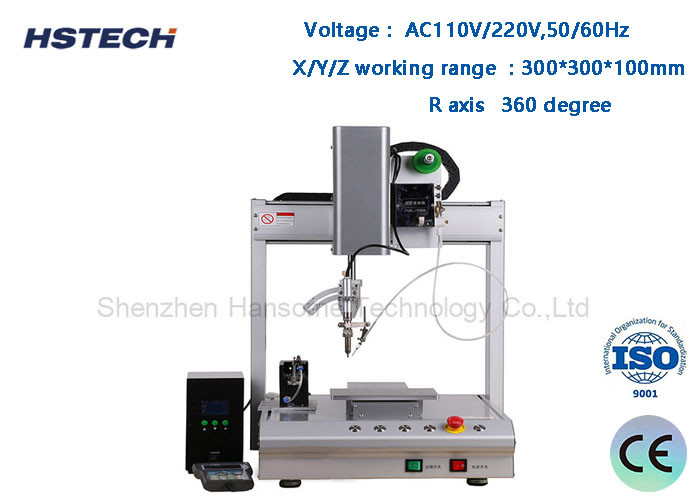

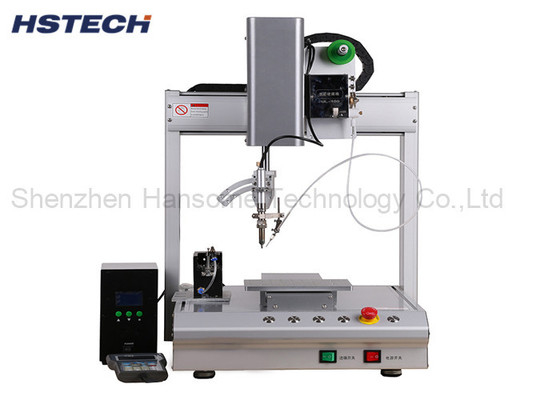

This automatic desktop type soldering machine is 4 axis moving system, single soldering iron with XYZ travel range 300*300*100mm, also rotation available.

This machine fixed the product by the customized fixtures, manual programing with the teach pandent box,it's a economic and cost-effective soldering machine.

Application

1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.

Features

1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.

2, The soldering iron without nitrogen, very safety and environment protective.

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.

4, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.

5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld LCD teaching pendant, the programming is simple and easy to learn.

Specification
