| Brand Name: | HSTECH |
| Model Number: | HS-158 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

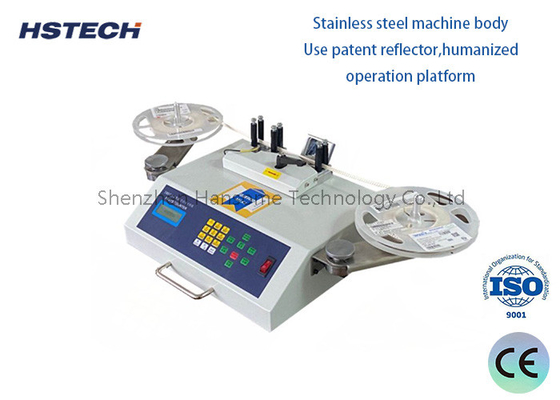

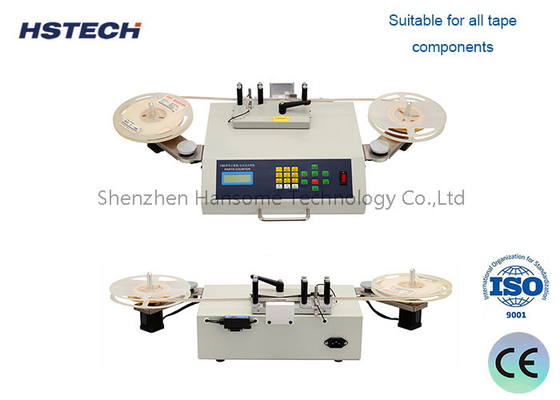

Advanced SMD Component Counter with Preset Count Quantity Double-Check Feature
Features
1. High precision and free from counting errors.
2. All SMD general-purpose reeling packing parts are applicable.
3. Countable for in both forward and reverse directions, with double check feature; able to preset the quantity.
4. Simple operation and unique pocket falling-proof design will minimize the damage to the tape.
5. The patented inclined operation panel enables users to see the parts in both the display and the pockets.
Specification
| Model: | HS-158 | |||
| Voltage: | AC220, 50/60Hz | |||
| Power Supply: | 15W | |||
| Motor Brand: | Panosonic 6W AC motor | |||
| Counting Range: | “-100000~100000" | |||
| Pitch Size: | 2,4,8,12,16,24,32,44,56,72,88 m | |||
| Plastic reel size: | 7-13 inch | |||
| Universal Products | Suitable for all tape components | |||
| Error | 0 | |||
| Product Size: | 450*270*180mm | |||
| Package size | 470*280*190mm | |||
| Gross Weight: | 9.5kg | |||
Scope of application
1. Incoming inspection of automatic parts counter IQC.
2. The parts counter is used in electronic production of materials, materials and materials.
3. Packaging count and leakage inspection of parts counter.
4.It is very convenient to count the parts.
5. Part counter inventory management, etc.
