| Brand Name: | HSTECH |
| Model Number: | NS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

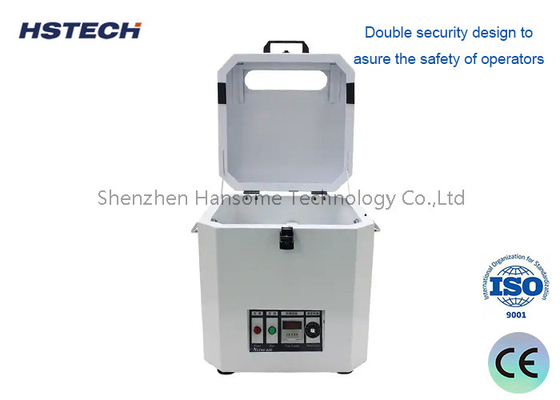

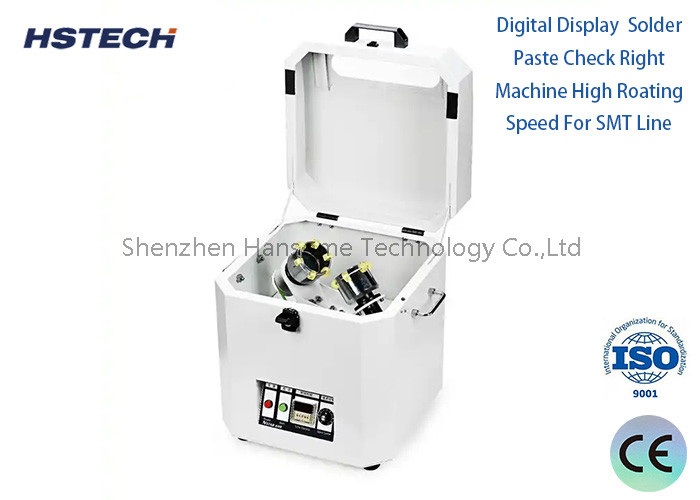

60W 220V/50HZ Digital Display SMT Solder Paste Mixer with High-Speed Rotation
Introduction
The revolution of the centrifugal force generated by automatic paste mixer,the force produced by the rotation of the rotating shaft and the angle of 45 degrees.The tank is located in the upper end of the paste continuous downward movement, at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste has good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of reflow soldering.
Features
1. Solder paste placed in 45-degree angle, rotation along the axial lead, then solder paste won`t stick to the wall.
2. Double security device, human safety is ensured.
3. Bubbles inside could be eliminated effectively when working.
4. Applies professional control circuit, considering to control work process.
5. Rotation speed is tested professionally, to make sure solder paste won`t be influenced by physical impact and heating.
| Model: | NSTAR-600 | |||
| Wattage: | 60W | |||
| Power: | AC220V, 50Hz | |||
| Roating speed: | Primary rotating:1400RPM;Sencond rotating:400RPM | |||
| Working Capacity: | 500g*2jar; | |||
| Tin Pot's Size: | M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us) |
|||
| Time Setting: | 0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time |
|||
| Display & Caution: | LED digital display,light blink and buzzer warning | |||
| Machine Demension: | 410*410*490mm(W*D*H) | |||
| Packing Demension: | 420*420*500mm(W*D*H) | |||
| Net/Gross Weight: | 40KG/45KG | |||
