| Brand Name: | HSTECH |
| Model Number: | HS-CVN350 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

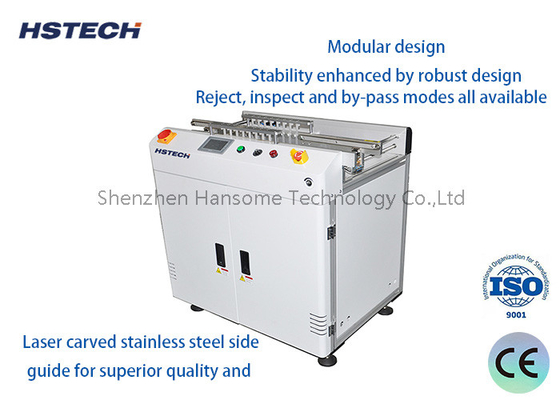

SMEMA Compatible PCB Handling Equipment for Smooth and Parallel Width Adjustment
Introduction
This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
Specification
| Model | HS-CVN350 | HS-CVN460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 1000*690*930mm | 1000*800*930mm |
| Weight | 70kg | 90kg |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L(optional) |
| Transporting speed | 0.5~20 m/min or specify |
| Power supply | AC100-230V,50/60Hz,single phase |
| Power consumption | 100VA max |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| Communication | SMEMA |
Features
1.PLC program control .
2.By-pass mode, inspection,NG reject mode selectable .
3.Selectable pitch settings.
4.Center PCB stop position.
5.Heavy bottom design to prevent shifting.
6.Tower-light display for machines working status.
7.Total 10 NG PCBs stock capability.
8.Touch screen operation panel .
9.SMEMA compatible .
Transporting rail
Lifting Sturcture
Electric control
