| Brand Name: | HSTECH |
| Model Number: | HS-SZ350 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
460mm Width 90 Degree PCB Turn Conveyor w/ Top Side Transparent Cover
Introduction
This machine used for change the PCB flow direction in the SMT production line.
Features
1, PCB flow direction can be changed within 90, 180, 270 degrees.
2, Fixed guide rail according to customer's requirement.

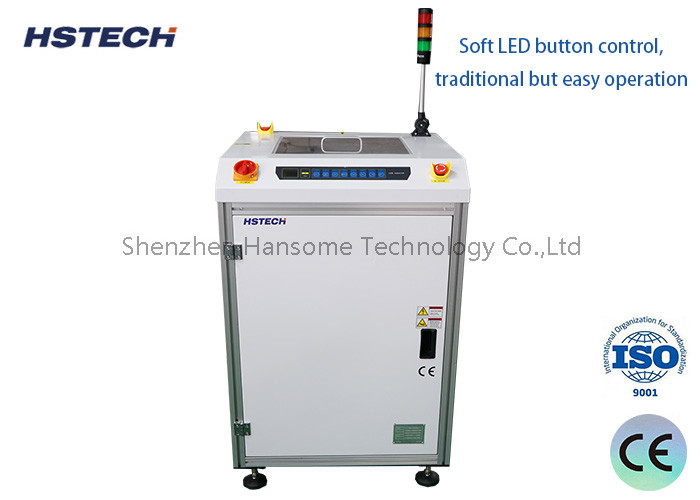

3, Soft LED button control, traditional and easy to operate.
4,Top safety transparent cover, operator can watch the whole working process.

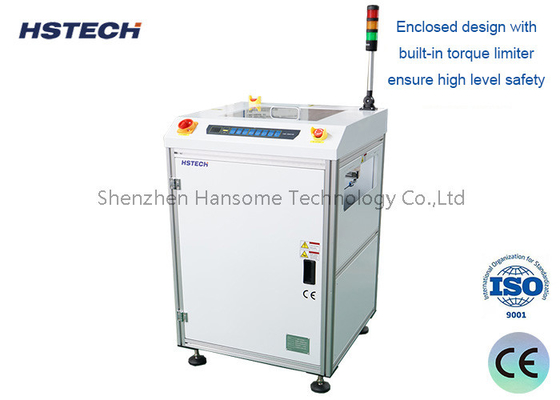

5,Enclosed design with built-in torque limiter to ensure high safety.
6,Hiwin linear guide rails and lead screws make rotation smooth and precise.
7,Minimise the transfer gap between conveyors.
8,Customisable PCB flow rate.
Smooth and parallel width adjustment (leadscrew).
9, Compatible with SMEMA.
Specification
| Product name | PCB Turn Conveyor |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
