| Brand Name: | HSTECH |
| Model Number: | HS-330BF |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Heat Dissipation with Optional Fan and Exhaust Port in 25 Layer PCB Handling Equipment
Introduction

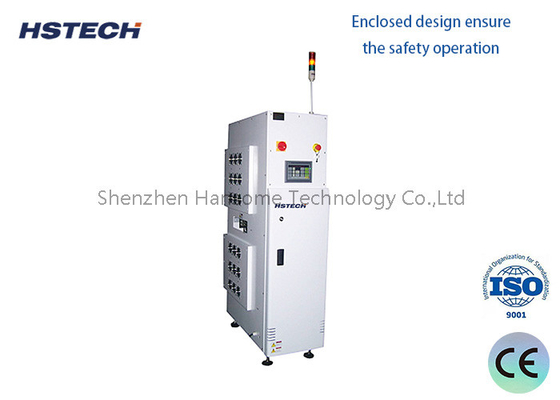

The PCB Buffer is an intelligent circuit board buffer device with 25 layers for storing circuit boards, each layer has a separate signal and each layer has a number. When a downstream machine sends a signal to a numbered layer, the buffer accepts the signal and gives a command to that layer, which then automatically selects and delivers the circuit boards to the downstream machine.
Features
1, Panasonic PLC control.
2, Intelligent touch screen control panel.
3, With FIFO and bypass function, or can be configured to multiple functions.
4, Servo motor is used for precise positioning.
5, Hiwin lead screw for width adjustment, smooth and stable.
6, Smooth bin lifting device with precision servo drive.

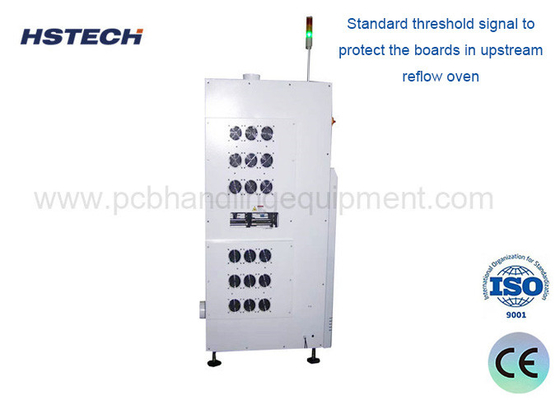

7, Optional fan and exhaust port for heat dissipation.
8, English operation interface.
9,Small size of the whole machine, does not occupy space in the plant.
10, SMEMA communication interface, can be connected with other automation equipment.
11,Three-colour LED display can show the machine status.
Specification
| Model: | HS-BF330 | ||||
| Voltage: | AC220V,50/60Hz | ||||
| PCB Dimension: | L(50*50)-(450*330)mm | ||||
| Air supply: | 4-6 bar,max 15L/min | ||||
| Transport height: | 900±20(mm) | ||||
| Transport Direction: | L-R or R-L (optional) | ||||
| PCB thickness: | min 0.46mm | ||||
| Up/down pitches: | 1-4(10mm step) | ||||
| Store Capacity | 25pcs or customized | ||||
| Cycle time | Around 15 seconds | ||||
| Communication | SMEMA | ||||
| Optional | Fan, observation window | ||||
| Certification | CE | ||||
| Machine Dimension: | 600*1150*1560mm | ||||
| Gross Weight: | 280kg | ||||
