| Brand Name: | HSTECH |
| Model Number: | HS-SP-4N |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
White 4-Tank Solder Paste Warm-up Machine with Automatic Alarm System
Introduction
Solder Paste Warm-up Machine, Solder Paste Aging Machine, which comes with a timer, allows easy control of the solder paste temperature warm-up time, which saves a lot of time in recording the time it takes for the solder paste to return to ambient temperature after it is taken out of the freezer. This is an effective way to control the temperature of solder paste, which can ensure the activity of solder paste, guarantee the printing quality, better control the production schedule and improve the production efficiency.
Features
1. Thaw multi cans of solder paste as the same time.
2. Intelligent thawing, control thawing time effectively.
3. Electric parts are the imported.

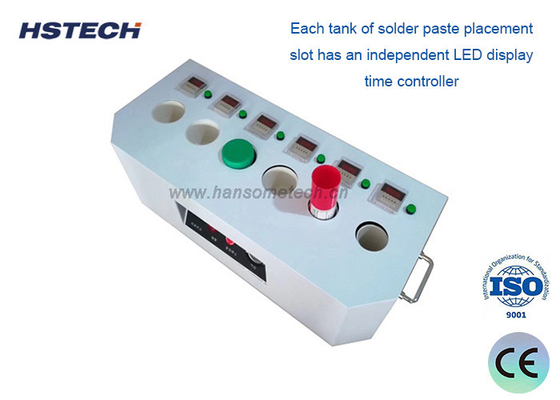

4. Each Can has the independent time control.
5. Can descends automatically after time setting, and would ascend after job is finished.
6. If power is cut off before reaches time , solder paste can would be kicked out.
| Model | HS-SP-4N | |||
| Control system | PLC | |||
| Assemblying parts | Import parts | |||

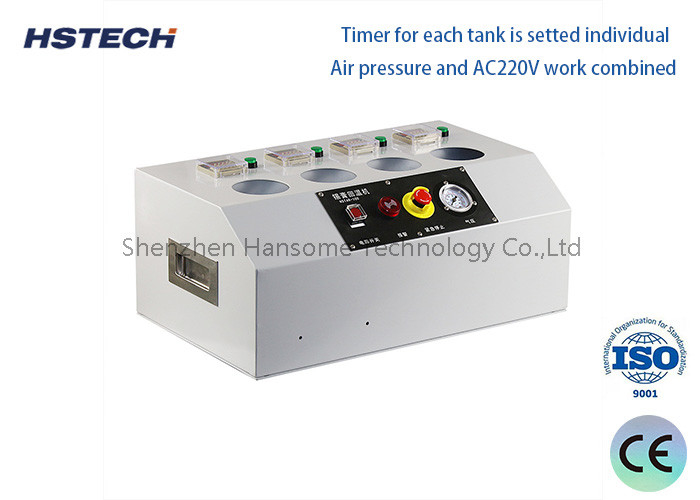

| Power | AC220V, 50Hz | |||
| Air Pressure | 0.4Mpa | |||
| Placing tank | 4 tanks | |||
| Machine Demension | 500*300*220mm(W*D*H) | |||
| Gross Weight | 16KG | |||
