| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | 2900~4000USD/set |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

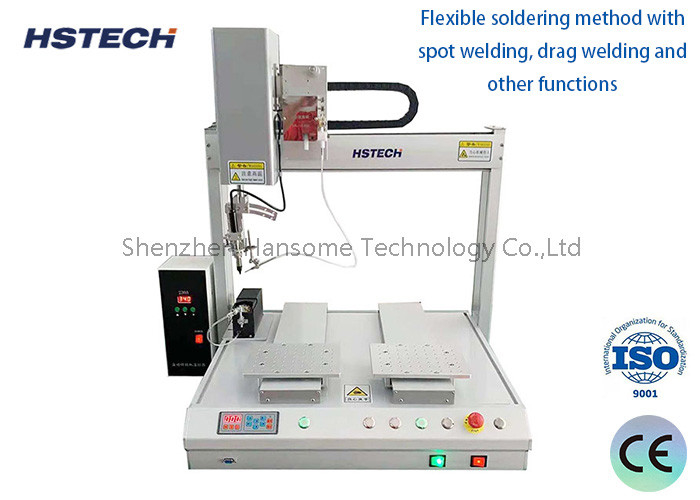

Manual Programming Windows Based 4 Axis Solder Robot
Introduction
Automatic soldering machine belong to after wave soldering reflow soldering station, main effect is the original copy of some welding can't furnace, its application field and industry more extensive, in principle, to use manual soldering station all can use the automatic soldering machine, due to the differences of products, there is the difference between efficiency and clamping mode, the main supply electronic products manufacturers, the main application industry are electrical appliances , toys, communication, medical apparatus and instruments, and many other industries.
Features
1, 4 Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The soldering iron without nitrogen, very safety and environment protective,
3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
7, With the handheld teaching pendant, the programming is simple and easy to learn.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
