| Brand Name: | HSTECH |
| Model Number: | HS-C600 |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |

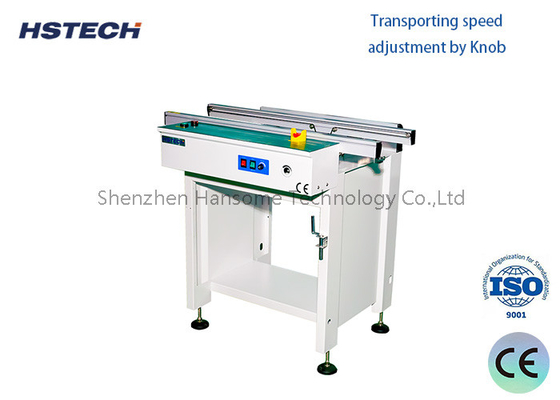

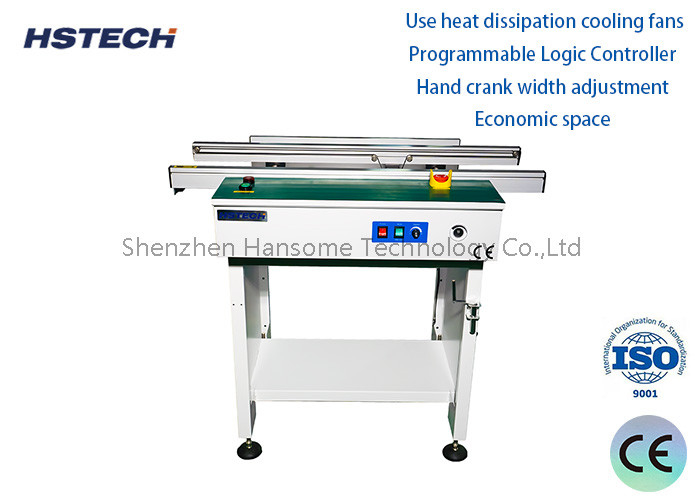

Adjustable Speed Motor PCB Handling Equipment with 600mm Conveyor Length
Features
1,Stable thickness stainless steel body.
2,Maximum width of PCB board 390mm, can manually adjust the board width.
3, Adjust the transfer speed by knob.
4, Anti-static green working table.
5, Aluminium alloy conveyor rail.
6, LED button control, speed adjustment motor.
7, Optional functions, tower light, inspection, dust cover, etc..
8, Can be customised according to customers' requirements.
9, Length available, 600mm, 1000mm, 1500mm or optional.
10, SMEMA signal for online connection.
Specification
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
