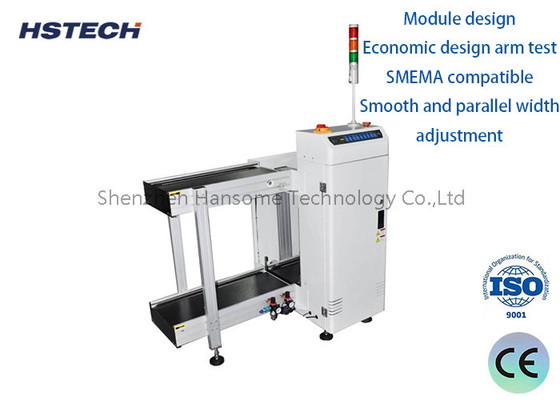

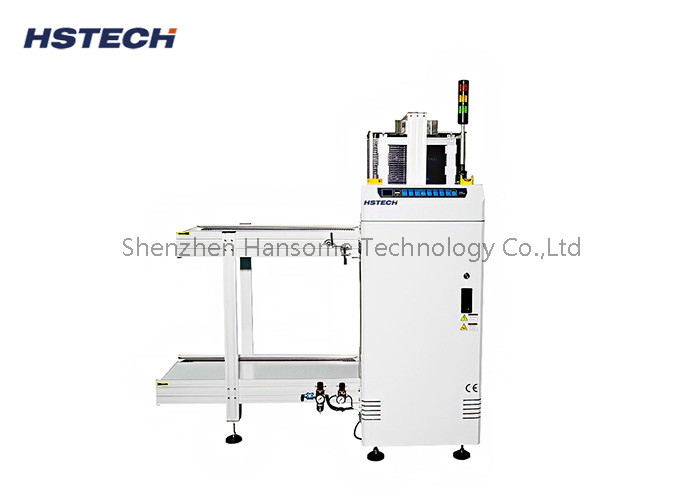

High Efficiency SMEMA Signal PCB Loader Handling Machine
Application
This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.
Features
1.Suitable To Handle Single Sided/Double Sided Boards.
2. Dedicated Aluminum Machine Frame With Specialized Plastic Rail Chain.
3. Pneumatic Board Clipping Structure.
4.Programmable Mitshubishi PLC Controlled.
5.Ballscrew Adjustment For Location Of Board Pushing Pneumatic Cylinder.
6.Real Color Touch Screen Controls.
7.SMEMA Interface.
8.Individual Electric Console.
10.Option Of Varies Board Size Model.
Specification
| Product name | PCB Loader Machine |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
