| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

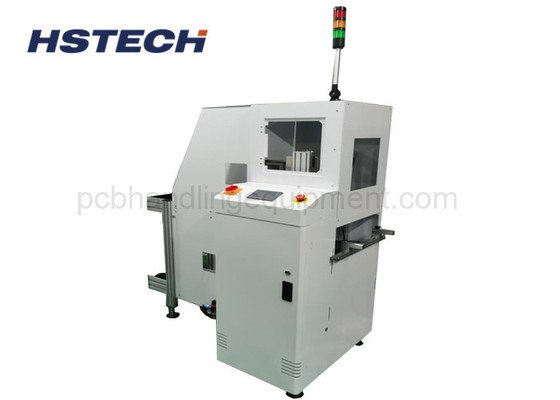

Ultra-High Speed Anti-Static Spiral Brush Special Corresponding SMT Printing PCB Surface Dust Cleaner
Introduction
This machine is used between PCB loader and screen printer, with brush and sticker roller to clean the dust,electricity static on the surface of the PCB.
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Features
1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.
