Air Cooled 3W UV Laser Marking System with Min Character 0.15mm

Air Cooled 3W UV Laser Marking System with Min Character 0.15mm

Brand Name: HSTECH
Model Number: HS-UV3W
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
UV Laser Marking Machine
Warranty:
1 Year
Control:
Touch Screen
PLC:
MITSUBISHI
Relay Brand:
Schneider
Optoelectronic Switch:
OMRON
Material:
Aluminum Alloy
Condition:
New
Thickness:
0.3 - 5mm
Signal:
SMEMA
Application:
Electronic Assembly
Color:
Silver
Control System:
PLC
OEM/ODM:
Available
Total Power:
2600W
Power Supply:
AC220V
Air Pressure:
4-6bar
Mounting Accuracy:
±0.01mm
Type:
Automatic
Weight:
30KG
Packaging Details:
Wooden package
Supply Ability:
100 sets per month
Product Description

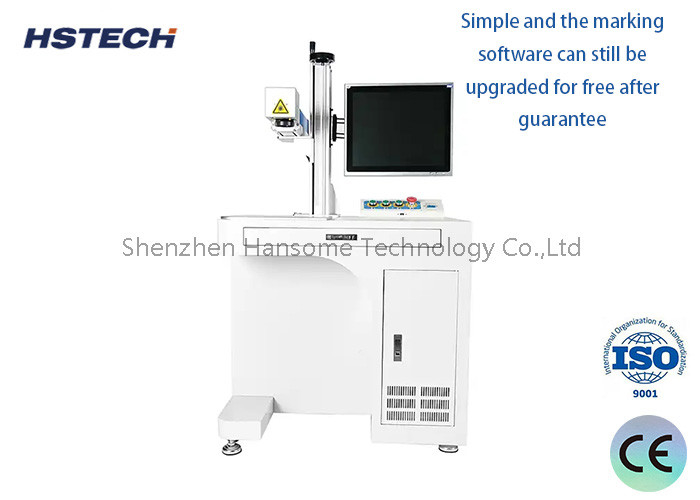

Air Cooled 3W UV Laser Marking System with Min Character 0.15mm



​Specification

Model HS-UV3W
Output power 3W
Laser type 3W UV laser unit
Marking area 150*150mm(Optional)
Laser point diameter <0.01mm
Laser output power 0~100% adjustable
Working frequency range 5~100KHz
Power stability <±1%rms
Laser wave length 355nm
Marking type Static marking/Dynamic marking
Marking speed 7000m/s
Min character 0.15mm
Repeat accuracy ±0.003mm
Laser unit Chinese brand/Overseas brand(optional)
Cooling type Air cooling
Power supply AC220V,60Hz,15A
Software Professional SW
Laser lifespan 20000Hrs
Machine size 900mm*680mm*1500
Machine weight 120kg



Features



1.Marking precision,speed,engraving depth arbitrary control;

2.Stable laser power,suitable for all non-metallic materials;

3.No consumable materials,low processing cost,high laser life of 20000-30000 hours;

4.Clear marking,not easy to wear off,small power consumption,environmental protection,energy saving.



Application



This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packingand printing, paper product, garments sampling, large width tailoring,shoemaking, furniture , model industry, craftwork and other industries.
