| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

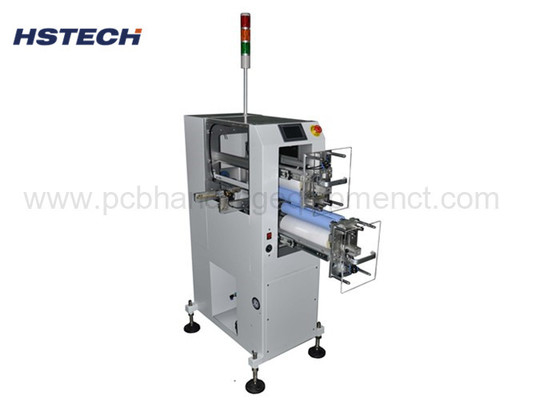

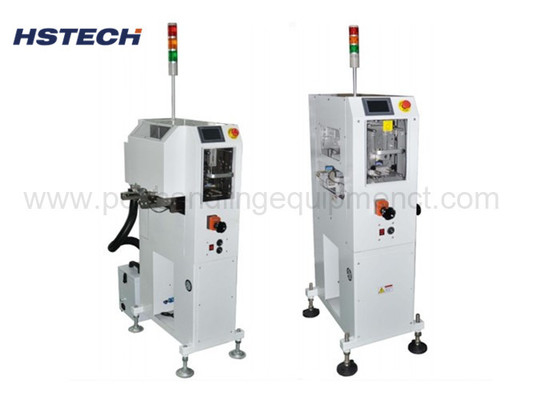

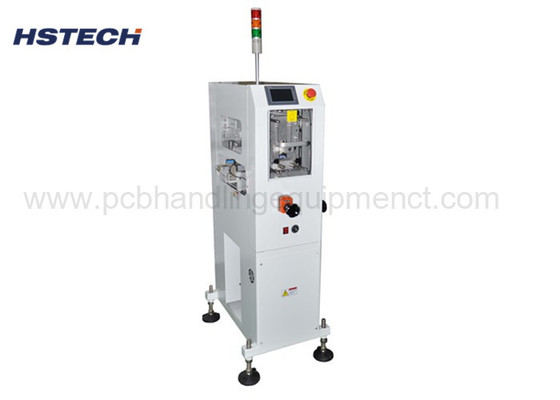

Ultra-High Speed Anti-Static Spiral Brush Vacuum Extraction Clean Method PCB Surface Dust Cleaner
Introduction
This machine is a PCB surface cleaning machine, used for cleaning dust, static electricity and dirty on surface of PCB. It used in the front of SMT production line, after the PCB loader and before screen printer. The machine first use a brush to cleaning, then use a ionizer bar to cleaning the static electricity, and after that use a roller together with 2 pcs sticker rollers, at the end also use a ionizer to cleaning the static electricity.
Specification
| Model | HS-DC250 | HS-DC330 | HS-DC390 | HS-DC460 |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB Transporting height | Standard 900±20mm |
| PCB flow direction | Left to right |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~240V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | 1 pc,ESD,high precision brush |
| Ionizer | 2 pcs(Keyence) |
| Sticker roller | 2 pcs |
| Roller | 1 pc |
| Dust collector | 1 pc |
| Transport speed | 0~9m/min,adjustable |
| Cycle time | Around 8s |
Features
1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.
