| Brand Name: | HSTECH |
| Model Number: | HS-390BF |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

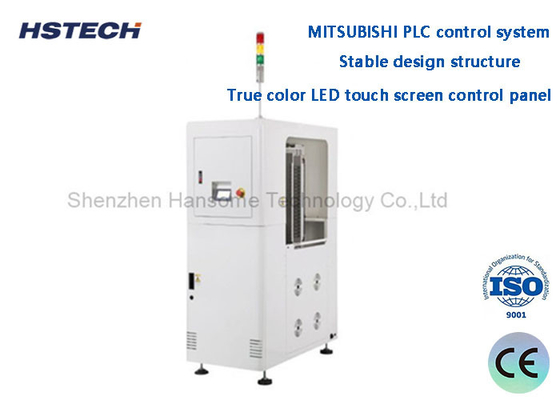

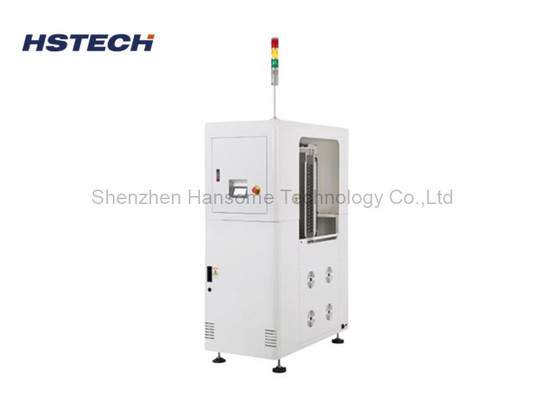

MITSUBISHI PLC Control System Stable Design Structure PCB Buffer Machine With FIFO LIFO, NG/OK And By-Pass Fuction
Features
1, This machine is used as a buffer between SMT machines.
2, MITSUBISHI PLC control system, with automatic alarm function.
3, Stable design structure.
4, True color LED touch screen control panel.
5, With FIFO, LIFO, NG/OK and by-pass fuction.
6, Customzied as customer's request to equip with conveyors for front or rear side.
7, Max can store 20pcs boards.
8, High precision screw driver.
9, Use high power 120W motor to drive the magazine.
10, 4 pitches selection, 25mm pitch step.
11, Standard SMEMA.
Specification
| Model | HS-390BF |
| PCB Dimension | 50*50~500*390 |
| Transport belt | Multiple level 3.5mm ESD belt |
| Power Supply | AC100-230V,single phase,max 300A |
| Air pressure | 4-6bar,max 10L/min |
| Transmission height | 920±20mm |
| Transport direction | left to right, or right to left |
| Step pitch option | 1-4(25mm step pitch) |
| Stocking capacity | 20pcs |
| PCB thickness | Min 0.4mm |
| Machine Dimension | 600*920*1200mm |
| Weight | 190kg |
