| Brand Name: | HSTECH |
| Model Number: | HS-460BF |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

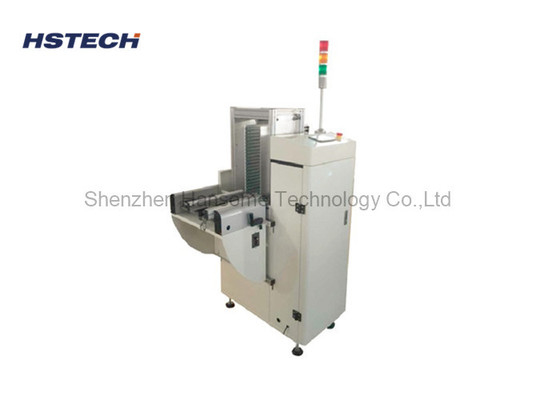

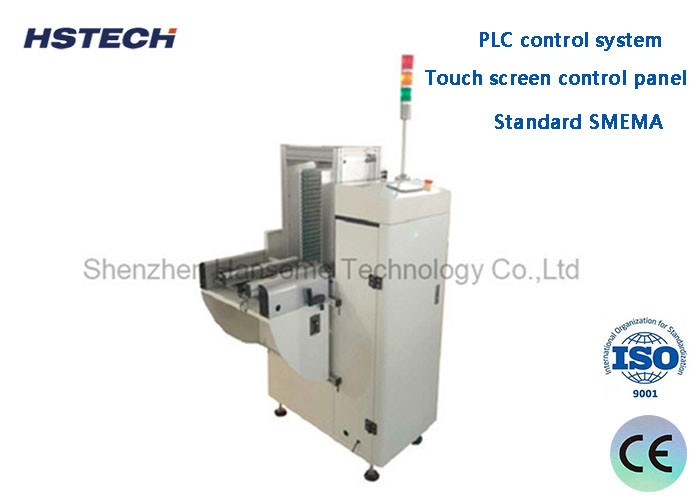

PLC Control System Standard SMEMA Touch Screen Control Panel PCB Buffer
This machine for behind the SMT production line of AOI, SPI, NG and OK pcbs in staging and repair
Specification
| Model | HS-460BF |
| PCB Dimension | 50*50~500*460 |
| Power Supply | AC100-230V |
| Air pressure | 4-6bar,max 10L/min |
| Transmission height | 920±20mm |
| Transport direction | left to right, or right to left |
| Step pitch option | 1-4(25mm step pitch) |
| Stocking capacity | 20pcs |
| PCB thickness | Min 0.4mm |
| Machine Dimension | 600*1200*1700mm |
| Weight | 190kg |
Features
1, PLC control system.
2, Touch screen control panel, easier operation.
3, 12 pcs or as customer's request.
4, Can store NG/OK pcbs automatically according to the signal of previous equipment.
5, Build in recall for control the order of PCB pass in and out.
6, FIFO(first in first out), LIFO(last in first out) and pass through function.
7, Standard SMEMA.
