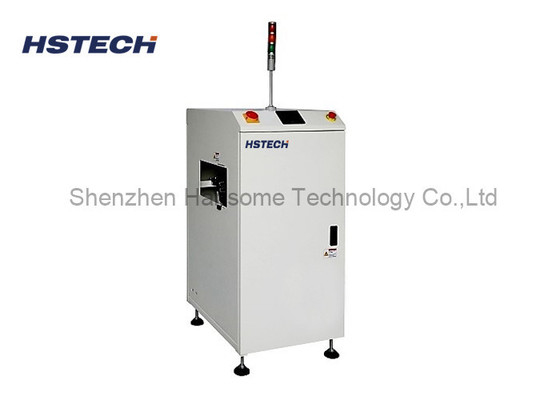

Stable And Durable Design 180 Degree PCB Handling Equipment With Pass Through Function
This equipment is used to flip the PCB for double side process.
Specification
| Model | HS-460FL |
| PCB dimension | (50*50)-(500*460)mm |
| Air supply | 4-6 bar,max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L-R or R-L (optional) |
| PCB thickness | Min 0.4mm |
| Up/down pitches | 1-4(10mm step) |
| Recycle time | around 20 seconds |
| Communication | SMEMA |
| Machine dimension | 600*900*1200mm |
| Weight | 140kg |

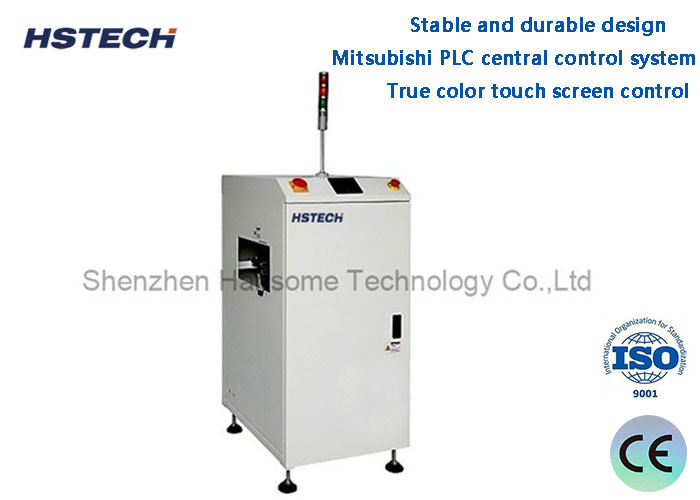

Features
1, Stable and durable design, achieve the 180 degree board turnover stable.
2, Rotating power switch to use step motor,much more smooth than traditional motor.
3, With Pass through function.
4, Mitsubishi PLC central control system, stable performance.
5, True color touch screen control.
6, Flexible turnover,ball screw can connect the upper and down stream equipment smoothly.
7, SMEMA communication interface, can be connected with other automation equipment.
