| Brand Name: | HSTECH |
| Model Number: | HS-M355 |
| MOQ: | 1pc |
| Price: | 25~80usd/pc |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs per month |

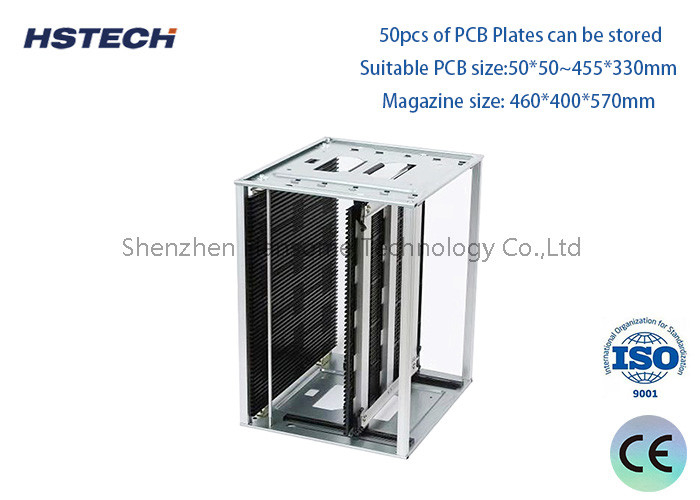

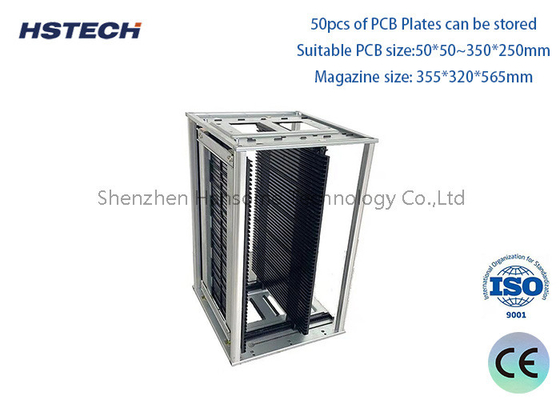

ESD Magazine Max Store 50pcs Width Adjustable PCB Storage Rack
Introduction
This type of PCB magazine, also known as PCB storage rack, is used to collect PCBs into PCB loaders and load them onto SMT production lines. The magazine is made of volume conductive polypropylene and durable metal, and the entire rack is anti-static, with a very stable structure, which can effectively protect PCBs from damage or bending.
Specification
| Overal size | 355*320*565mm,also has other options |
| Suitable PCB size | 50*50~350*250mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Features
1. This product is used for PCB loaders to collect PCBs and transport them to the production line.
2. The top and bottom are made of monotonous metal panels to ensure the stability of the entire structure.
3. The overall rack adopts an anti-static design and can store up to 50 PCBs.
4. The width can be adjusted by gears and fixed with clips.
5. The rack is non-toxic, odorless, moisture-proof, corrosion-resistant, durable, and can also be stacked.
6. Stable structure, will not bend during operation, and the rack is also resistant to high temperatures.
7. Easy to install and disassemble, easy to replace and maintain.
