| Brand Name: | HSTECH |
| Model Number: | HS-M355 |
| MOQ: | 1pc |
| Price: | 25~80usd/pc |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs per month |

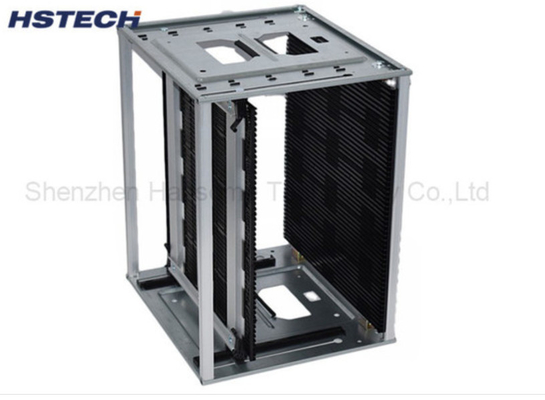

Width Adjustable Max Store 50pcs SMT ESD Magazine PCB Storage Rack Handling
Introduction
This PCB Magazine,also called PCB storage rack is used for collecting the PCBs into the PCB loader machine,then loading to the SMT production ine, the magazines are made of volume conductive polypropylene and durable metal, the whole rack is anti-static, and the structure is very stable, which will well protect the PCBs from damage or bent.
Specification

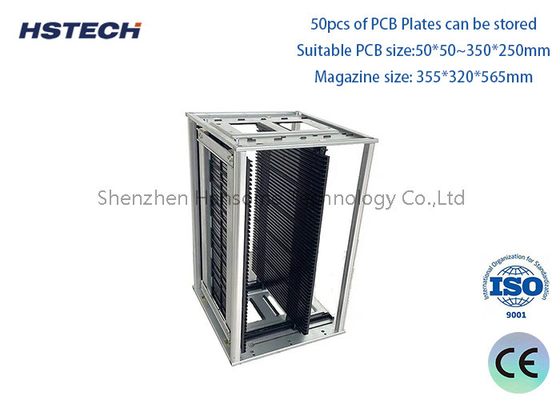

| Overal size | 355*320*565mm,also has other options |
| Suitable PCB size | 50*50~350*250mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Description of ESD PCB Magazine Rack
Made of volume conductive polypropylene and metal, which is used to transport the PCB boards for automated assembly lines.
The anti-static PCB magazines racks are an ideal aid in the production, storage and transportation of PCBs.
1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.
2.Adjustable through screws,gear.
3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.
4.Surface resistance: 10^4~10^6 ohm.
5.Base: P-Conductive PS, M-Zincification Iron.
6.The number of the SMT magazine rack Can accommodate PCBs.
