| Brand Name: | HSTECH |
| Model Number: | CT-03 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |

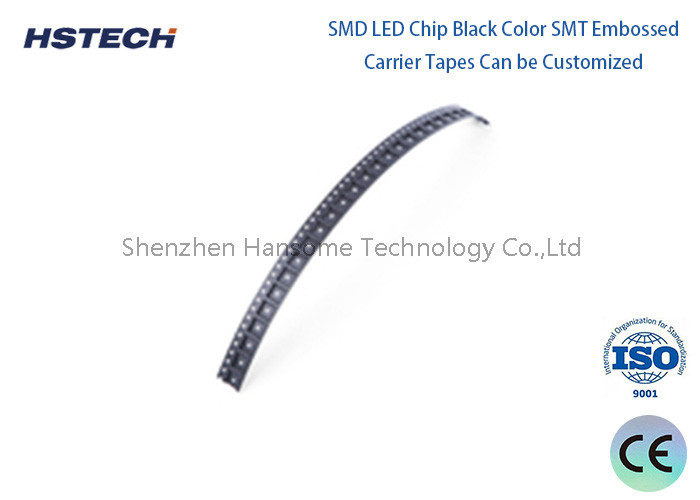

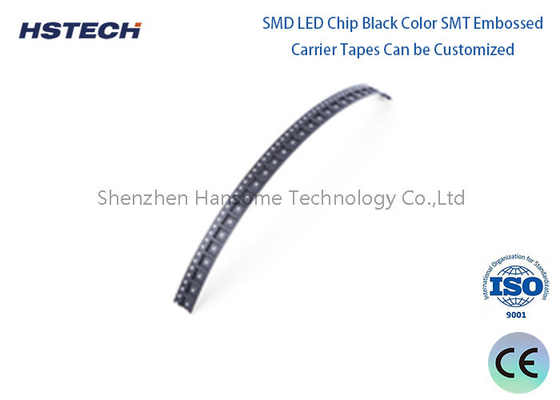

Conductive/Non-Conductive SMT Embossed Carrier Tape for SMD Components
Introduction

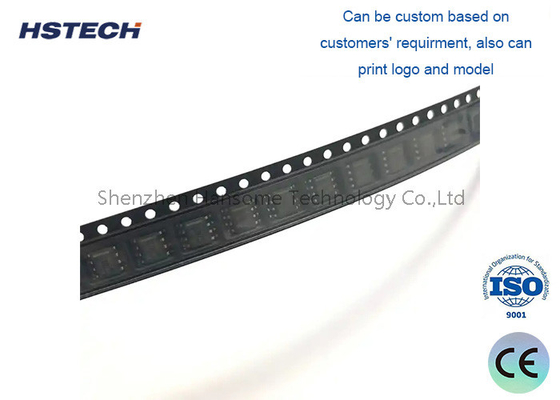

The embossed carrier tape are made of polystyrene, polycarbonate and PET. Carrier tapes with varying conductive and anti-static qualities to suit different components applications.The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm, we also can custom for customers based on their demand.
Carrier tape specification
| Name | Carrier tape |
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 8-104mm |
| Thickness | 0.3-2.0mm,also customized for customers |
| Application | Smd components, electronic parts, hardware parts |
| Meter for per reel | According to the components |
| Cover tape | Cold sealing/hot sealing options |
The whole packing reels including the carrier tape, cover tape and external reell, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Blow-moulding packaging, can be shaped into any shape, not only packaging to protect the product but also to enhance the image of the product, can effectively isolate the product from the air, the gas to play a moisture-proof, dust-proof, temperature and other roles. Transparent material to make the product better display, conducive to sales, the tray can make the product neat and orderly earthenware, so that the production, inspection, points convenient, can be applied to promote and automated production, the product is widely used in the electronic device mounting process, common resistors, capacitors, transistors, diodes, precision screws and other electronic components.
