| Brand Name: | HSTECH |
| Model Number: | CT-03 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |

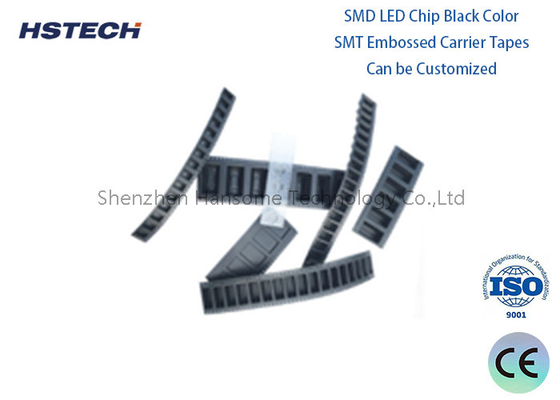

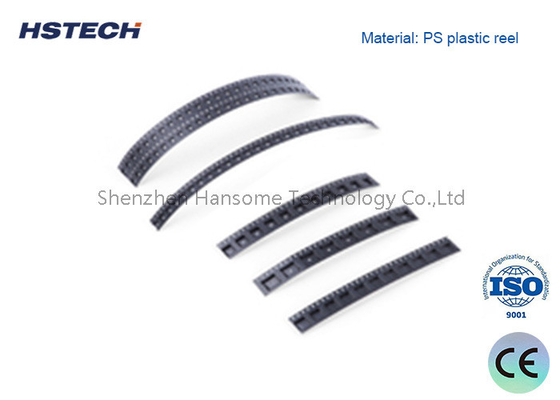

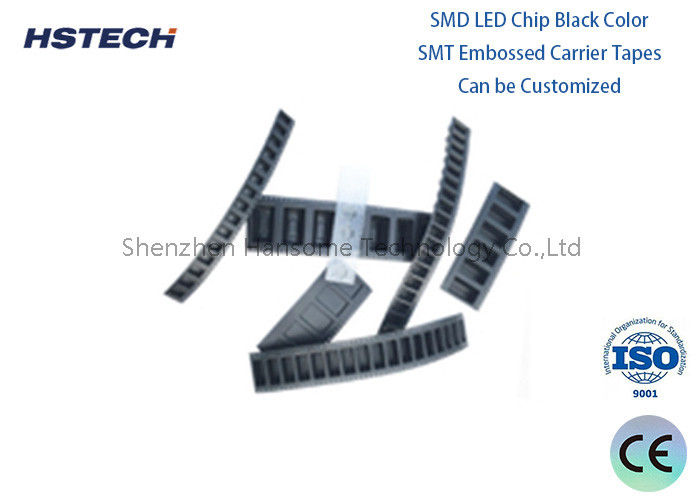

Smd Components Package with Anti-Static/Conductive Carrier Tape and Cover Tape
smd component carrier tape
At present, the vast majority of PCB boards more or less use this low-cost, high productivity, reduce the size of the PCB board production technology.SMT technology has been widely used to promote the development of SMD (surface mounted devices), the original jack type components by SMD components to replace the inevitable. At the same time, people on mobile phones, computers and other electronic products, small size, multi-functional requirements, and promote the SMD components to highly integrated, miniaturised development in addition to other transport carriers such as trays, plastic tubes, etc. SMD components must also be able to be in the SMT machine by the high-speed automated use of the transport carriers required - SMD carrier tape system. From the protection, economic, capacity and other considerations, the carrier tape system is quite advantageous.
Carrier tape specification
| Name | Carrier tape |
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 8-104mm |
| Thickness | 0.3-2.0mm,also customized for customers |
| Application | Smd components, electronic parts, hardware parts |
| Meter for per reel | According to the components |
| Cover tape | Cold sealing/hot sealing options |
| Reels | Available |
The whole packing reels including the carrier tape, cover tape and external reel, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.
Carrier tape size and matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Advantages
1. No heating, easy to use.
2. The bonding force is very stable, not easy to come off.
3. The effect of re-bonding and the initial bonding effect is not significantly different, so it is very convenient to replace the components: 4. Better anti-static effect, can reach the electrostatic conductive level.
Application
This carrier tape is widely used in IC, capacitors, resistors, connectors, micro-transformers, inductors, electronic switches, diodes, transistors, LED chip, Low Power LEDs, Mid/High Power Packages, Domed Packages, LED Modules, Lenses, LED Die,crystals and other surface-mount components packaging, to meet the requirements of efficient, fast and miniaturized production of modern electronic products. Applicable to all belts, uniform density, consistent peel strength, anti-static function. Mainly used in connectors, chip capacitors, resistors, integrated blocks, chips can be used with PS, PC, PVC, PET material carrier tape.
We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.
