| Brand Name: | HSTECH |
| Model Number: | CT-03 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |

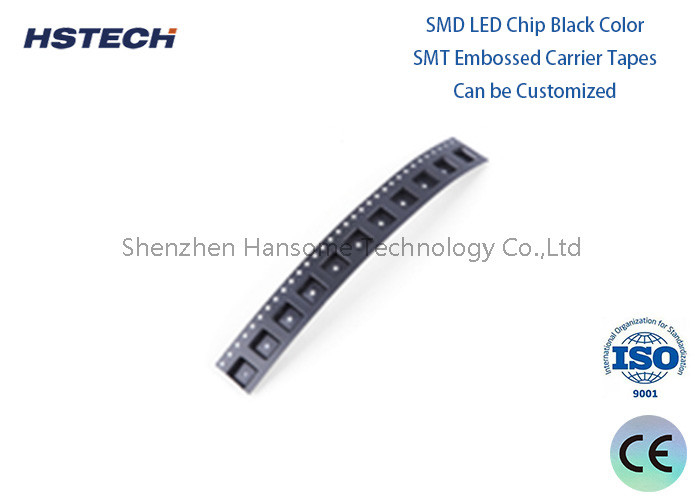

SMD Components Carrying Carrier Tape: PS/PC/PET, 8-104mm, Black/Transparent
Introduction
Carrier tapes are mainly used in the electronic component mounting industry. It is used together with the cover tape (top sealing tape) to carry electronic components such as resistors, capacitors, transistors, diodes, etc. in the pockets of the carrier tape, and form a closed package by sealing the cover tape on top of the carrier tape, which is used to protect the electronic components from being contaminated and damaged during transport. When the electronic components are mounted, the cover tape is peeled off and the automatic mounting equipment removes the components from the pockets and mounts them on the IC boards through the precise positioning of the index holes of the carrier tape.
Carrier tape specification
| Name | Carrier tape |
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 8-104mm |
| Thickness | 0.3-2.0mm,also customized for customers |
| Application | Smd components, electronic parts, hardware parts |
| Meter for per reel | According to the components |
| Cover tape | Cold sealing/hot sealing options |
The whole packing reels including the carrier tape, cover tape and external reell, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Rubber packaging tape according to the material classification of PS and PC two kinds, according to the colour classification of transparent and black two kinds, transparent colour insulation or anti-static two kinds, they are adapted to the packaging of multi-layer ceramic capacitors, resistors, inductors, etc.; black for the conductive material, mainly adapted to the packaging of electro-crystals, diodes, I ℃ and any static-sensitive components.
