 Introduction

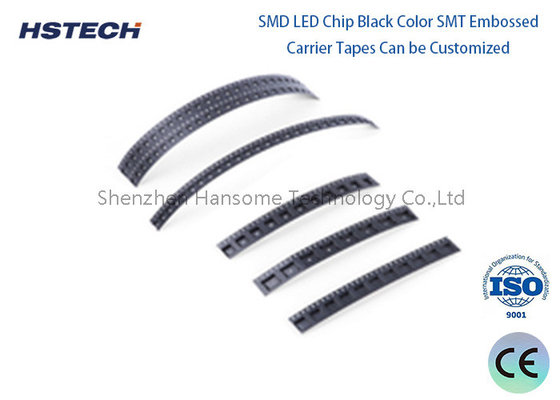

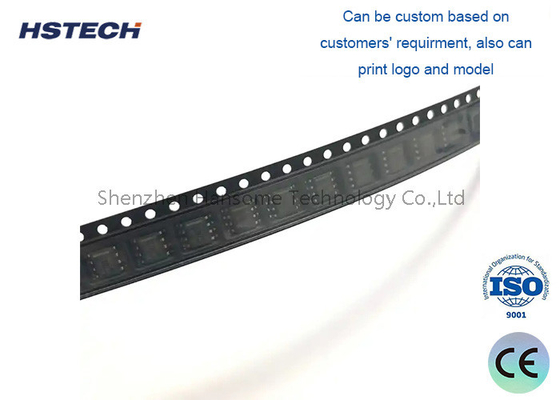

The carrier is made of polystyrene, polycarbonate, and PET. The carrier has different conductivity and anti-static properties, suitable for different component applications. The carrier tape has pockets that match the contour of the components to be carried. The width of the carrier is between 8 and 104 millimeters, and we can also customize it according to customer needs. In the carrier belt, there are sprocket holes on both sides of the carrier belt, one side is circular with a radius of about 1.5 mm, and the other side is elliptical with a radius of 0.75 mm. These holes can accurately present the pockets to the retrieval unit.

Carrier tape size and it matched cover tape

Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.

Reels

We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements

Application

Embossed carriers are widely used for surface packaging, load-bearing, and transmission of surface mounted devices, such as micro PCBs, ICs, LED chips, connectors, diodes, transistors, resistors, conductors, capacitors, fuses, switches, relays, resonators, antenna covers, socket components, etc.
We provide high-quality embossed carriers and customized carriers according to customer needs.
If you need a carrier to place and seal the parts into the picking and placing system, then we provide you with a choice.
