| Brand Name: | HSTECH |
| Model Number: | GD-01 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000000 Meters per month |

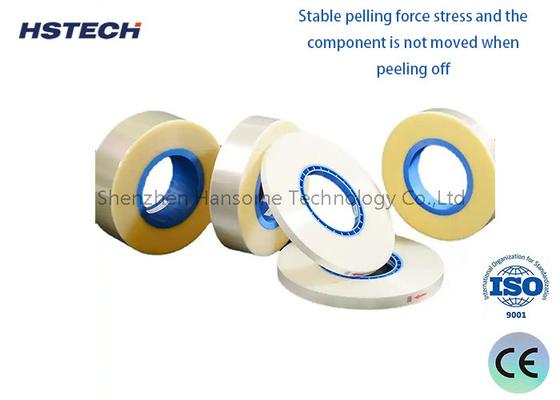

SMD Component Counter: Hot Sealing Transparent PET Material Cover Tape, 300M/Reel, 9.3mm Width
Introduction
The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.

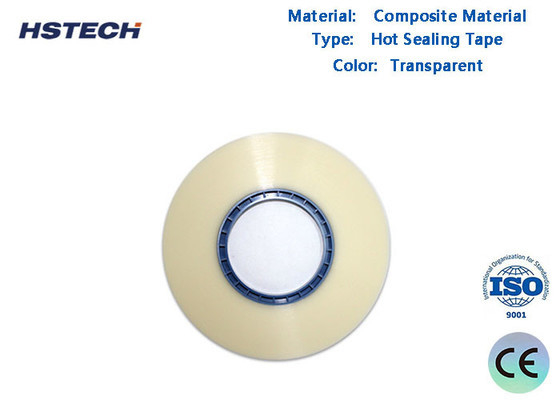

Cover tape specification
| Name | Cover tape |
| Material | Composite material |
| Calculation unit | Meter |
| Tape width | 9.3mm |
| Tape specs | 300M per reel |
| Color | Transparent |
| Sealing pressure | 0.2Mpa |
| MOQ | 200meters |
| Cover tape | hot sealing |
| Reels | Available |
Carrier tape size and matched cover tape
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Product Advantages
1.Applicable To All Silicone PSA Tape
2.Precise And Stable Release Force
3.Good ReleaseForce Performance
4.Control The Coating Thickness At The Nanometer Level
Application
Used in the electronic component placement industry, and is widely used in the packaging and testing of SMT electronic components such as IC, resistance,inductance,capacitance, sensor, LED, diode, transistor, etc.
