| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

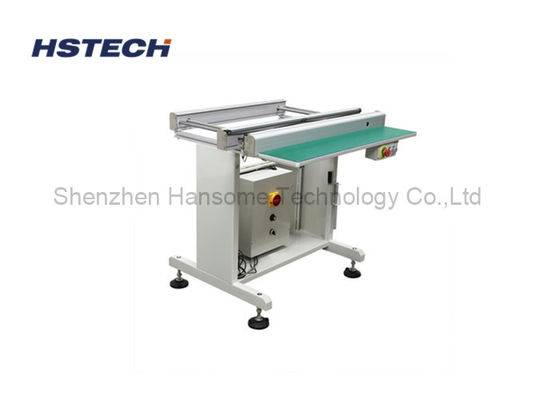

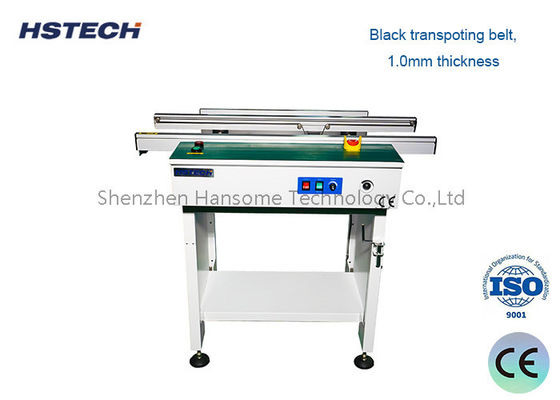

ESD Flat Belt PCB Linking Conveyor for SMT Production Line
Features:
1, Modular design.
2, Iron square tube framwork, powder coating on surface.
3, Variable speed control function.
4, Sturdy structural design improves the stability of the equipment.
5, Use stainless steel screw,smooth and parallel width adjustment.
6, Compatible SMEMA standard.
Specification:
| Model | HS-460-CY | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*460mm | |||||
| Width adjustment | Hand shake | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
