| Brand Name: | HSTECH |
| Model Number: | HS-S331RA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

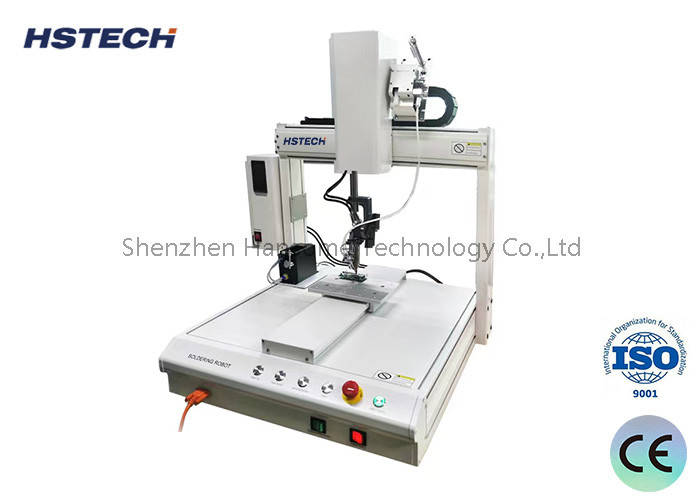

Automatic Desktop Soldering Robot with Smog Cleaner for Air Purification
Introduction
This automatic soldering machine is a specially customized soldering machine equipped with a smoke purifier to clean soldering smoke and maintain a better air environment in the production factory. This machine is a normal demand in some European countries and has become a demand around the world. The vacuum cleaner has a smoke suction pipe installed at the top of the welding nozzle and moves together with the welding nozzle. Through this method, the vacuum cleaner can suck in most of the smoke, keeping the air clean and healthy.
Smog Cleaner Features
1. The pipeline has a length of 1.4M and a large opening size, making it easy to inhale smoke. Metal material body, stable.
2. Brushless motors have the characteristics of low noise, high speed, stable operation, long service life, low power consumption, and high efficiency (maintenance free, zero consumables).
3. The design of the vortex turbine has the characteristics of anti fatigue, smooth operation, low noise, large air volume, high suction, and high efficiency.
4. A stepless speed controller has been installed for remote control of air volume.
5. Multi filter design ensures thorough filtration of toxic or harmful substances, protecting human and environmental health.
6. All filter elements can be replaced, which not only extends the service life of the filter elements but also reduces their operating costs.
7. Easy to install, environmentally friendly, and qualified for national air quality testing.
8. CE certification, safe and reliable.
Smg Cleaner Specification
| Model | H100A | H200A |
| Voltage | 220V/110V,50/60Hz | 220V/110V,50/60Hz |
| Power | 100W | 200W |
| Pipe size | Diameter 75mm,length 1400mm | Diameter 75mm,length 1400mm |
| Noise | <42dB | <50dB |
| Air volume | 250m³/h | 370m³/h |
| Weight | 15kg | 17kg |
| Machine body size | 420*245*450mm | 420*245*450mm |
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
