| Brand Name: | HSTECH |
| Model Number: | HS-S5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

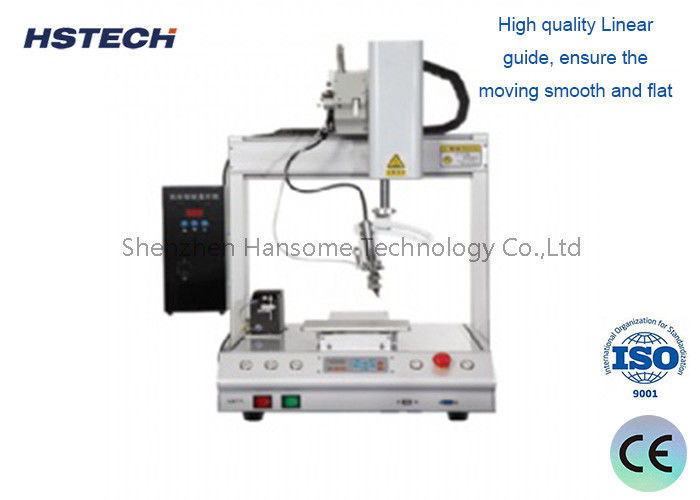

High Performance Shinano Motor Timing Belt Automatic Soldering Robot
Introduction
This automatic soldering robot assemblyed with high quality parts, driven by step motor and timing belt, by customized the Jig to fix the soldering PCB, the temperature automatic heating, to the specific temperature, the solder wire auto feed to the solder tip, then the solder tip automatic moving according to the setted programs. So the solder wire melt on the PCB to achieve then automatic soldering. This machine is a desktop type machine, it's widely used in PCB welding wire, charger plug welding, connector soldering, DC terminal tinning, LED light strip connection and other fields. Automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.
Features
1, Temperature controller automatic heating, solder wire automatic feeding
2, Driven by stepper motor and timing belt, manual programming.
3, Famous brand Hiwin linear guide, high working accuracy.
4, Grey color, it's a very suitable color in the electronic factory.
5, Tobletop type, easy to move and maintenance.
6, High efficiency, keep the machine working all the time.
7, Flexible soldering, available for spot soldering, drag soldering and other functions.
8, Optional parts supply available.

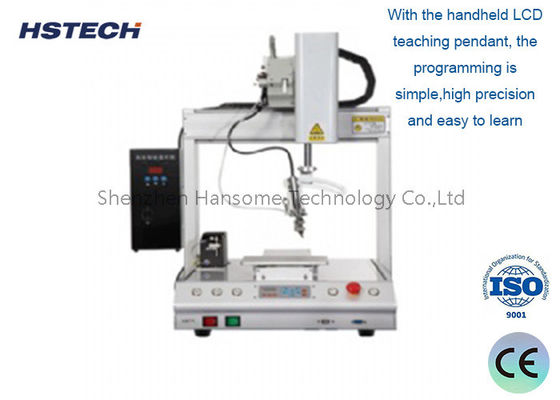

9, Teach pendant programming, can save max 99 groups programs,
10, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.
11, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
Specification
| Model | HS-S5331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y1/Y2/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 60kg |
| Machine dimension |
680*585*800mm |
