| Brand Name: | GKG |
| Model Number: | GSE |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

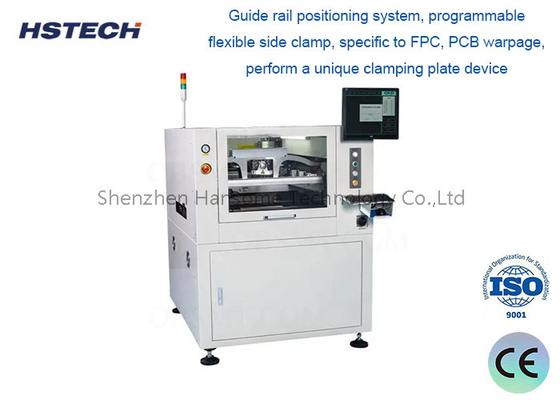

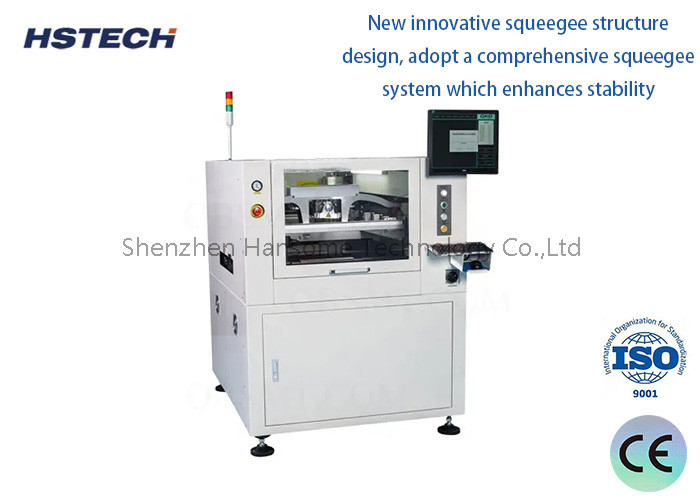

SMT Solder Paste Stencil Printing Machine Magnetic Pin/Support Block
Specification
| Model | GSE |
| Stencil size | 370x370mm(min size) |
| 737x737mm(max size) | |
| 20-40mm(thickness) | |
| Max PCB Size | 400x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| PCB warpage | max 1% PCB diagonal |
| Transport height | 900±40mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, can be adjustment |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/up-down table |
| PCB clamping system |
Patented over the top clamping/side clamping
|
| Print head |
Two independent motorised printheads
|
|
Squeegee Pressure
|
0.5~10Kg (Program Control)
|
|
Print Speed
|
6-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
|
Cleaning System
|
Ireinforced vacuum absorption ,dry ,wet, vacuum three modes
|
|
CCD FOV
|
8x6mm
|
| Machine adjust range |
X: ± 3mm, Y:± 7 mm , θ:± 2°
|
| Vision |
Look Up/Down Optics Structure/CCD/Geometry Pattern-match
|
Whole Machine Specification
|
Repeat Position Accuracy
|
±0.01mm
|
|
Printing Accuracy
|
±0.025mm
|
|
Cycle Time
|
＜8 Sec
|
|
Product Changeover
|
old:<3 mins,new:<5 mins |
|
Air supply
|
4~6 kgf/cm
|
| Power supply |
AC:220±10%,50/60HZ, 2.5KW
|
| Control method | PC |
| Operation system |
Windows XP/Win7
|
|
Machine Dimensions
|
1158(L) x 1362(W) x 1463 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
1. GKG dedicated adjustment lifting platform. Stable and easy to adjust, it can quickly adjust the top pin height of PCBs with different thicknesses.
2. Cleaning system: The GKG cleaning system is equipped with three cleaning methods: dry cleaning, wet cleaning, and vacuum cleaning. It can be used in combination. If customers do not need to use automatic cleaning, manual cleaning can also be used to reduce cleaning time and improve production efficiency. The new wiping system ensures sufficient contact with the template, and the increased vacuum suction can effectively eliminate residual paste in the screen, thereby achieving effective automatic cleaning function. The CCD part is separated from the learning system. When the CCD is working, the CCD part moves independently, reducing the load on the servo motor and improving machine speed and accuracy.
