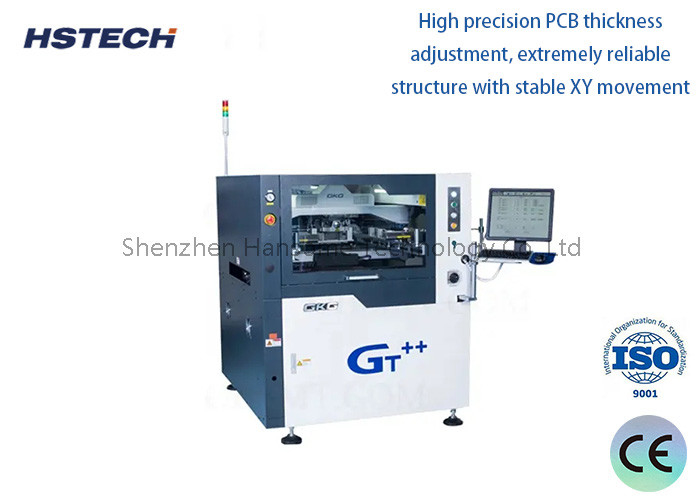

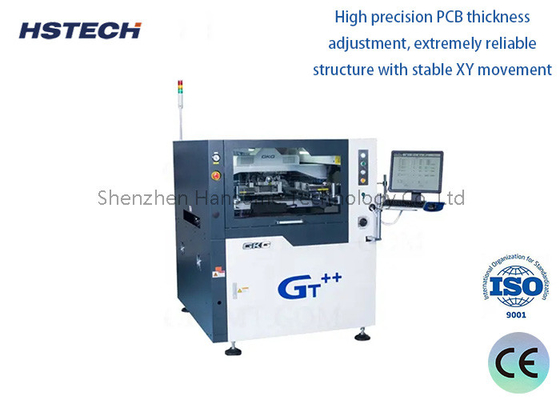

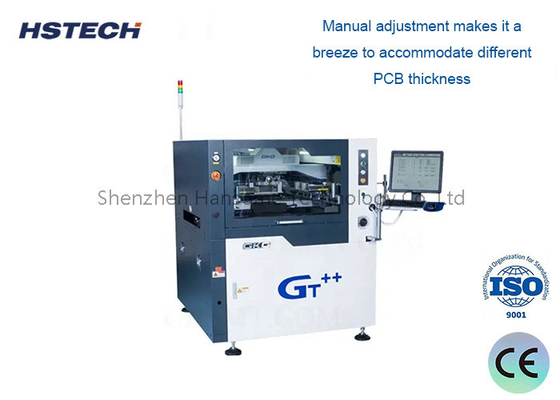

GKG SMT Solder Paste Stencil Printing Machine with Drip Cleaning Function
Introduction
Handling M Size board, GT++ is adept at delivering all your business needs. It successfully attained 01005 miniature printing. Through full contact with the stencil, our improved cleaning system ensures that any remaining paste in the mesh will be eliminated before printing. The 2D paste inspection function is able to detect insufficient paste, bridging and other defects. GT++ is also equipped with top and motorized side clamp, thereby ensuring superior printing quality.
Specification
| Model | GT++ |
| Max PCB Size | 510x510mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 23mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| PCB positioning (support method) | Magnetic pin/support block/auto up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Machine Performance
| Model | GT++ |
| Repeat position accuracy | ±12.5um@6,CPK≥2.0 |
| Print accuracy | ±18um@6,CPK≥2.0 |
| Print cycle time | ＜7.5 sec |
| Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision | |
Whole Machine Specification
|
Power supply
|
AC:220±10%,50/60HZ, 3.0KW
|
|
Air pressure
|
4~6 kgf/cm²
|
|
Air consumption
|
around 5L/min
|
|
Operating temperature
|
-20℃~+45℃ |
|
Operating humidity
|
30%~60%
|
|
Machine Dimensions(without tower light) |
1240(L) x 1410(W) x 1500 (H)mm
|
|
Machine Weight
|
Approx: around 1100Kg |
Features
1, CCD digital system, total new optical path system, uniform circular light and high brightness of coaxial light source. With both light source system, brightness can adjust to an infinite loop, allowing different mart point can be easily recognize (including uneven mark point) such as tin plating, copper plating, silver plating, hot air soldering, FPC and various types of different PCB color.
