PCB Loader Machine SS304 20M/Min 40mm Pitch with SMEMA for SMT Line
Introduction:
PCB Loader Machine is an automated equipment mainly used to automatically load and unload PCB boards on PCB (Printed Circuit Board) production lines. It is widely used in the electronics manufacturing industry by improving production efficiency and reducing manual operations.
Application:
This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.
Features:
1, Enclosed design, anti-dust, well protect the PCBs.
2, Observation window, operator can watch the working process clearly.
3, Stainless steel machine body, stable with long lifespan.
4, Stability enhanced by robust design.

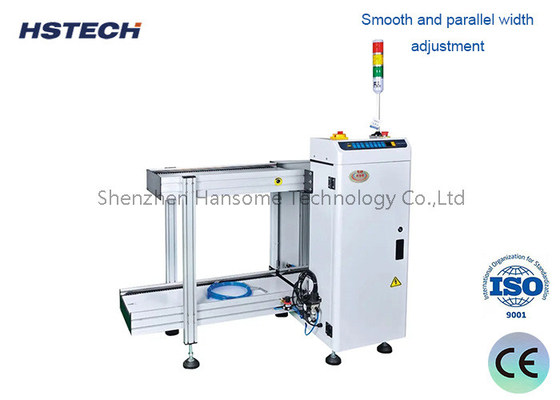

5, Smooth and parallel width adjustment.
6, Three magazine racks application.
7, Top and bottom pneumatic clamps to secure magazine rack.
8, No PCB breakage guaranty during loading &unloading.

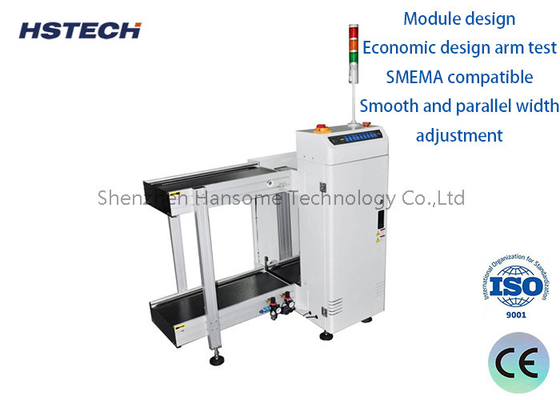

9,SMEMA compatible.
Specification:
| Product name | PCB Loader Machine |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Workflow
Loading: The robot grabs the PCB board from the storage unit and sends it to the production equipment via the conveyor belt.
Positioning: The sensor ensures that the PCB board is accurately positioned in the production equipment.
Processing: The PCB board is processed in the production equipment.
Unloading: After processing, the robot moves the PCB board back to the storage unit or the next process.
Advantages
Improve efficiency: Automated operation reduces manual intervention and improves production efficiency.
Reduce errors: The automated system reduces human operating errors.
Improve precision: Ensure the precise positioning of the PCB board in the production equipment.
Reduce costs: Long-term use can reduce labor costs.
Application areas
Electronic manufacturing: Used for the production and assembly of PCB boards.
Automotive electronics: Used for the manufacture of automotive electronic control units.
Consumer electronics: Used for PCB production of devices such as smartphones and tablets.
