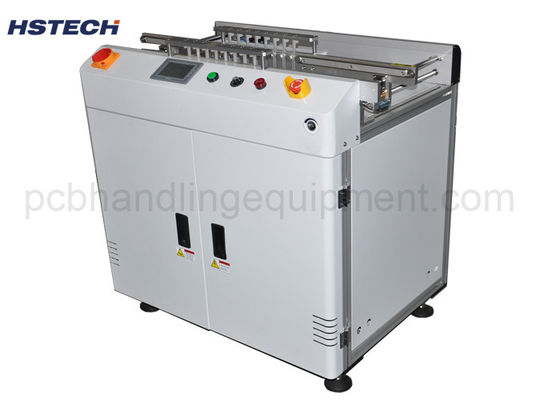

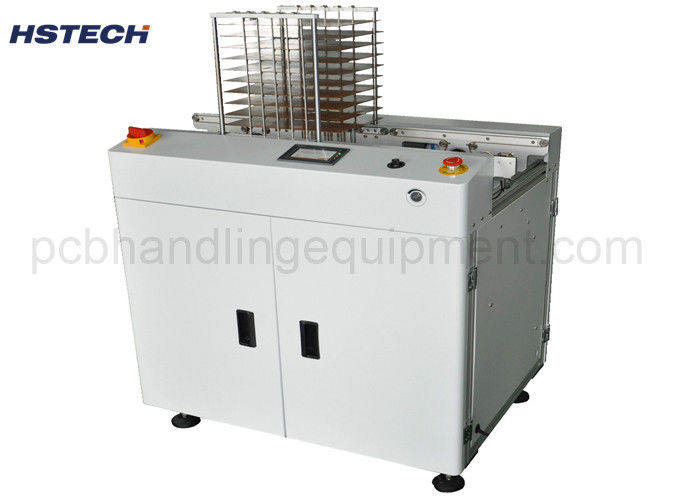

Laser Carved Stainless Steel PCB Reject Conveyor PLC PCB Reject Conveyor

Brand Name:	HSTECH
Model Number:	HS-CVN4600
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Reject Conveyor

Power Supply:

AC100-230V

PCB Stock Capacity:

5pcs Or 10pcs

Contol:

Touch Screen

Signal:

SMEMA

Suitable PCB Dimension:

50*50~550*460mm

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Laser Carved Stainless Steel PCB Reject Conveyor PLC PCB Reject Conveyor

Introduction:

A PCB Reject Conveyor is a specialized conveyor system designed to handle and transport defective or rejected printed circuit boards (PCBs) during the manufacturing process. Its primary function is to ensure that non-conforming products are efficiently removed from the production line, thereby maintaining quality standards and streamlining workflow.

Features:

1. Reject, inspect and by-pass modes all available.

2. Modular design.

3. Stability enhanced by robust design.

4. Laser carved stainless steel side guide for superior quality and durability.

5. Ergonomic design arm rest.

6. Smooth and parallel width adjustment(lead screw).

7. Different lengths available upon request.

8. Variable speed control.

9.SMEMA compatible.

Specification:

Function	This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
Transport height	910±20mm
Transportation direction	L~R, or R~L(optional)
Transporting speed	0.5~20 m/min or specify
Power supply	AC100-230V,50/60Hz,single phase
PLC brand	Mitsubishi
Sensor brand	Sick
Driver brand	Meanwell
Power consumption	100VA max
Air pressure	4-6bar
Air consumption	Max 10L/min
Communication	SMEMA

Model	HS-CVN350	HS-CVN460
Efficient PCB length	5050~450350mm	5050~550460mm
Machine dimension	1000690930mm	1000800930mm
Weight	70kg	90kg
