Touch screen PCB Shuttle Conveyor with SMEMA compatible
Introduction
PCB Shuttle Conveyor is an automated conveying device used for PCB (printed circuit board) manufacturing and assembly. It is mainly used to efficiently and accurately transfer PCB boards between different stations in the production line. It is usually used in SMT (surface mount technology) production lines, testing equipment, reflow ovens and other links to improve production efficiency and reduce manual intervention.
Application:
This unit used to redirect PCB flow to different channels, from 2 line to 1 line, or from 1 line to 2 lines.
Features:

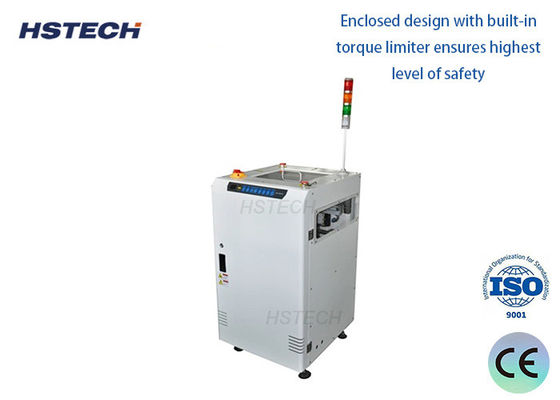

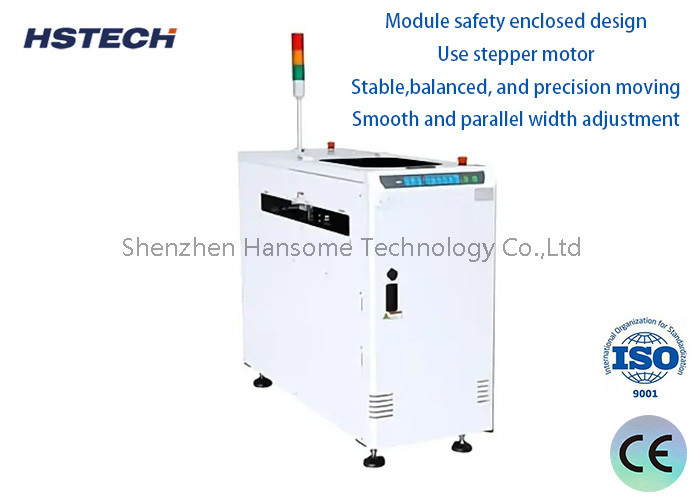

1. Module safety enclosed design.
2. Use stepper motor.
3. Stable,balanced, and precision moving.
4. Smooth and parallel width adjustment.
5. PCB transporting direction follow customer requirement.
6. Touch screen control panel.
8.SMEMA compatible.
Technical Details:
| Function | This unit used to redirect PCB flow to different channels, from 2 line to 1 line, or from 1 line to 2 lines. |
| Model | HS-PYJ250 |
| Transport height | 910±20mm |
| Translation distance | Standard 2200mm(1~4th rail) or customized |
| Translation time | Customized |
| Translation method | Stepper motor+conveyor belt |
| Rail fixed | 1st and 4th rail fixed |
| Suitable PCB size | 50*50~400*250mm |
| Transfer direction | L-R, or R-L |
| PCB transfer mode | 2 in 1 out, 1 in 2 out, or 2 in 2 out. |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Machine dimension | 600*2600*1200mm |
| Signal | SMEMA |
