| Brand Name: | HSTECH |
| Model Number: | HS-390CLD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

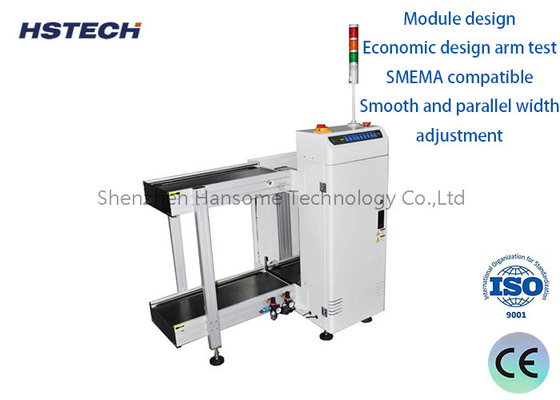

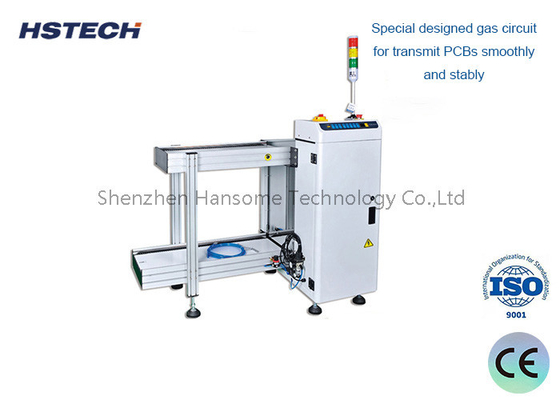

Multi Magazines Four Pitch Destacker PCB Loader Handling Machine
Features
1. Solid and stable design.
2. PLC control system.
3. Light touch LED membrane switch or touch screen control panel.
4. Options available.
5. Top and bottom pneumatic clamps to secure magazine rack.
6. Pressure regulated on pusher’s to prevent board damage.
7. Self diagnostic error code display.
8. SMEMA compatible.
Specification
| Model | HS-250CLD | HS-330CLD | HS-390CLD |
| PCB dimension | (50x50)~(350x250) | (50x50)~(455x330) | (50x50)~(530x390) |
| Magazine size | 355x320x565 | 460x400x565 | 535x460x565 |
| Machine size | 1700x780x1200 | 2000x860x1200 | 2100x920x1200 |
| Loading time | 6 seconds | ||
| Magazine changeover time | 20 seconds | ||
| Air pressure | 4-6 bar, max 10L/min | ||
| Transport height | 920±20mm | ||
| Transport direction | left to right, or right to left | ||
| PCB thicknes | Min 0.4mm | ||
| Magazine quantity | 2 pcs | ||
| Step pitches | 1-4(10mm pitches) | ||
| Weight | Approx 200kg | Approx 220kg | Approx 240kg |
