| Brand Name: | HSTECH |
| Model Number: | HS-330ULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

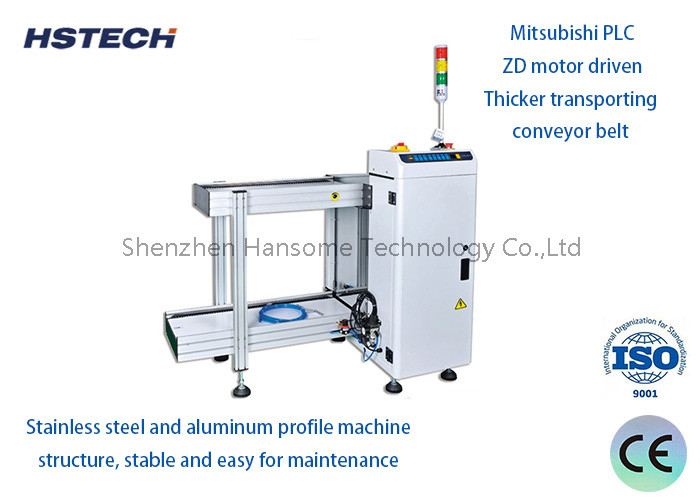

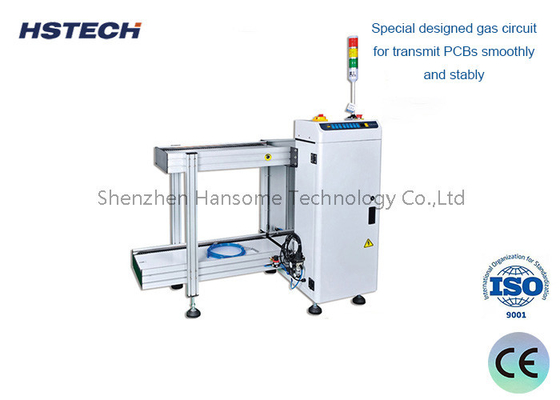

Selective Pitch Settings PCB Unloader Board Handling Equipment
Introduction
This units used to collect the PCBs into the magazines at the end of SMT line.
Features
1.PLC control system .
2.Used at the terminal of SMT production line to recover multi-sided PCB.
3.After receiving the board signal from the host computer, while receiving the PCB piece by piece, push the PCB into the material frame for storage.
4.Three racks can be placed Stepper Motor Push Plate Design .
5.It is not easy to damage the PCB board SMEMA standard four-core signal line, which can be directly connected to other equipment for use.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
